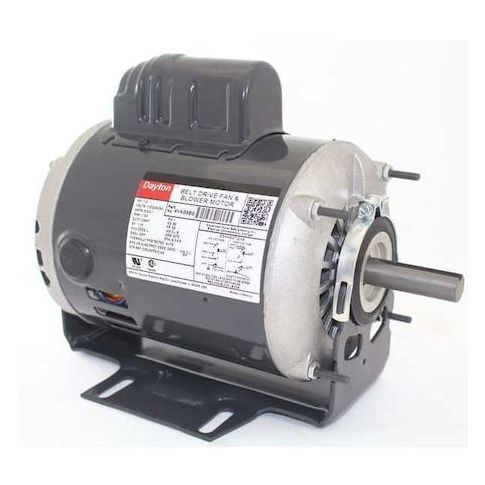

Capacitor-Start Belt Drive Motor, 1/2 HP, 56 Frame, 115/208-230V AC Voltage, 1, 725 Nameplate RPM MPN:4VAG6BG
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2374111
Capacitor-Start Belt Drive Motor, 1/2 HP, 56 Frame, 115/208-230V AC Voltage, 1, 725 Nameplate RPM
This 1/2 HP capacitor-start belt drive motor is designed for reliable performance in a variety of applications, including fans and blowers. Its 1,725 nameplate RPM provides efficient operation, while its 1.15 service factor ensures it can handle demanding tasks. The motor's open drip-proof enclosure and cradle base mounting make it easy to integrate into existing systems. With a maximum ambient temperature of 60 degrees C, it can operate in a range of environments. Suitable for continuous duty cycles, this motor is ideal for use in fans, blowers, and other applications where reliable, efficient operation is crucial.
Top product features:
- Capacitor-start design for improved starting torque and efficiency
- Single-phase operation for simplified installation and control
- Continuous duty cycle for uninterrupted operation in demanding applications
Top product applications:
- Dust collection systems
- HVAC systems
- Industrial ventilation systems
Fan and Blower Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 8.2/4.1 A Full Load Amps, 56 Frame, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel, Motor Mounting Position All Angle
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.32
- Package Width: 8.25
- Package Height: 11.00
- Package Weight: 21.04
Product info last updated on April 11, 2026 12:03pm UTC
Category: Motors
