C-Frame Motor, 1 In. L, Shaft End, Auto MPN:4M074E
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2349907

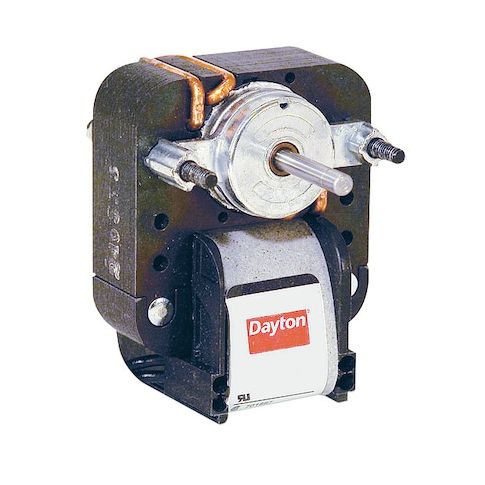

C-Frame Motor, 1 In. L, Shaft End, Auto
This compact C-Frame Motor from Dayton is a reliable and efficient solution for various applications. With a single phase design and shaded pole motor, it delivers 1/70 horsepower and 3,000 RPM. Suitable for use in 230V AC environments, it offers a continuous duty cycle and can operate in temperatures up to 40 degrees C. Perfect for small machinery, lab equipment, and other low-power applications, this motor provides a cost-effective and space-saving solution. Its compact design and open air over motor enclosure make it easy to integrate into existing systems, making it an ideal choice for a wide range of industries.
Top product features:
- Single Phase Motor Design
- Shaded Pole Motor Design with One-Shot Thermal Protection
- Continuous Duty Cycle Operation
Top product applications:
- Air Handling Units
- Fan Applications
- Conveyor Systems
C-Frame Motor, Single Phase, Motor Design Shaded Pole, 1/70 hp HP, Nameplate RPM 3,000 RPM, No. of Speeds 1, Voltage 230V AC, 0.48 A Full Load Amps, C-Frame Frame, Output Watts 12W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection One-Shot, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
Additional Information
- Country of Origin: VN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.94
- Package Width: 3.35
- Package Height: 2.68
- Package Weight: 1.87
Product info last updated on February 3, 2026 11:34pm UTC
Category: Motors
