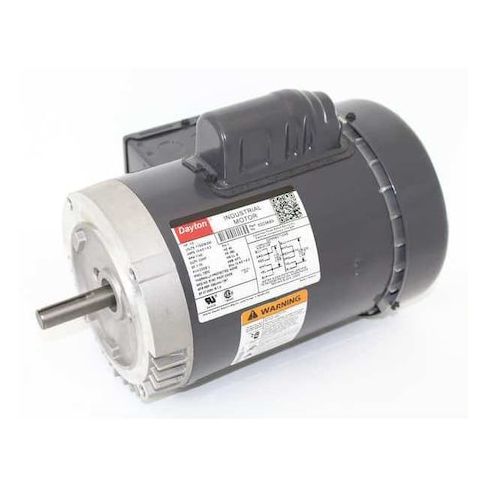

Capacitor-Start General Purpose Motor, 1/2 hp HP, 115/208-230V AC Voltage, 56C Frame
This 1/2 hp capacitor-start general purpose motor is designed for a wide range of applications, including industrial and commercial use. Its single-phase motor design and 115/208-230V AC voltage make it suitable for various settings, while its 1,140 RPM nameplate speed ensures efficient operation. The motor's totally enclosed fan-cooled design provides reliable performance in demanding environments, and its CW/CCW rotation allows for flexible installation. With a service factor of 1.15 and a maximum ambient temperature of 40 degrees C, this motor is ideal for continuous duty cycles in applications such as pumps, conveyors, and fans.
Top product features:
- Totally Enclosed Fan Cooled design for improved durability and reduced maintenance
- Continuous duty cycle for uninterrupted operation
- Single Phase, Capacitor-Start motor design for efficient power utilization
Top product applications:
- Pump applications such as aquarium pumps or pool pumps
- Conveyor systems for small to medium-sized manufacturing facilities
- Fans for air circulation in small to medium-sized buildings
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 10.4/5.1-5.2 A, 56C Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 32.00
