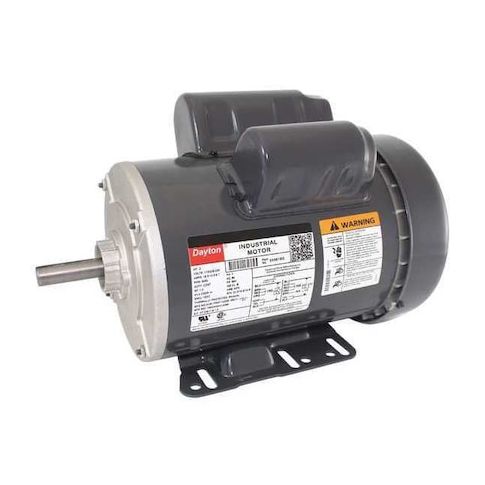

Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/208-230V AC Voltage, 56H Frame MPN:5K961
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2331147
Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/208-230V AC Voltage, 56H Frame
This 2 hp capacitor-start/run general purpose motor is designed for a wide range of applications, including industrial and commercial use. With a single phase design and 3,450 RPM nameplate speed, it's ideal for powering equipment in factories, warehouses, and other high-traffic areas. The motor's totally enclosed fan cooled design ensures efficient heat dissipation and long lifespan, while its rigid base mounting type provides stability and durability. Perfect for applications such as conveyor systems, pumps, and fans, this motor offers reliable performance and low maintenance, making it a valuable addition to any industrial or commercial setting.
Top product features:
- Totally Enclosed Fan Cooled motor design provides a safe and efficient operation in various environments.
- Capacitor-Start/Run motor design allows for single-phase operation with improved starting and running performance.
- Continuous duty cycle capability enables the motor to operate for extended periods without interruption.
Top product applications:
- Industrial laundry equipment
- Pumps and irrigation systems
- Conveyor systems
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 19.5/10.8-9.7 A, 56H Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 32.00
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on January 31, 2026 5:25am UTC
Category: Motors
