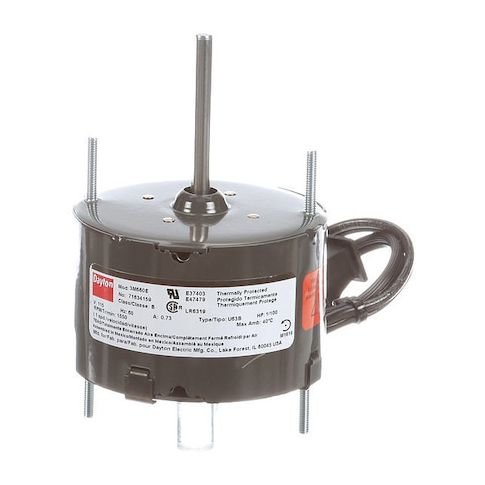

HVAC Motor, 1/100 HP, 1550 rpm, 115V, 3.3 MPN:71634159M
HVAC Motor, 1/100 HP, 1550 rpm, 115V, 3.3
This compact 1/100 HP HVAC motor is ideal for a wide range of applications, including residential and commercial heating and cooling systems, ventilation fans, and air handling units. Its 1550 rpm speed and 115V single-phase operation make it a versatile solution for various installation scenarios. The motor's shaded pole design and totally enclosed air-over enclosure ensure reliable performance and durability in harsh environments. With its compact size and lightweight design, this motor is perfect for tight spaces and easy installation, providing continuous operation in temperatures up to 40°C. Perfect for new installations or replacement applications.
Top product features:
- Totally Enclosed Air-Over motor enclosure design provides protection from dust and debris.
- Single Phase motor design allows for use in a variety of applications.
- Shaded Pole motor design provides a low-cost, reliable solution for low-power applications.
Top product applications:
- Air Conditioner Compressor
- Fan Motor for Small Appliances
- Portable Heater or Humidifier
HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/100 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115V AC, 0.60 A Full Load Amps, 3.3 Frame, Output Watts 7.4 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.70
- Package Width: 4.70
- Package Height: 3.90
- Package Weight: 2.30
Product info last updated on February 8, 2026 5:56am UTC
Category: Motors
