Belt Drive Mtr, SplitPh, ODP, 1/12HP, 850rpm MPN:6XJ02BG
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2310944

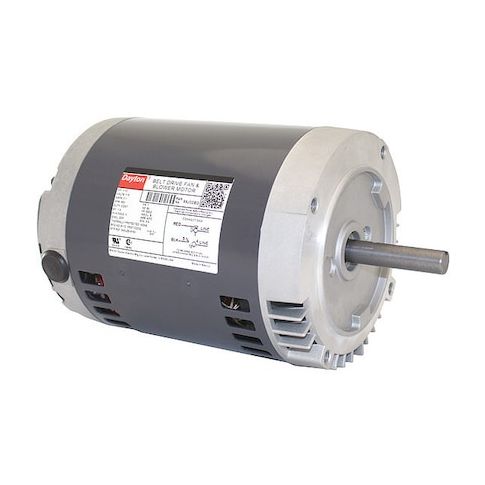

Belt Drive Mtr, SplitPh, ODP, 1/12HP, 850rpm
This Dayton belt drive motor is a reliable and efficient solution for a variety of applications, including fans and blowers. With a single-phase design and 1/12 horsepower rating, it provides a consistent and controlled output. The open drip-proof (ODP) enclosure design protects the motor from dust and debris, while the steel frame and 56CZ frame size ensure durability and stability. This motor is ideal for use in continuous duty cycles and can operate in temperatures up to 40°C. Its compact size and lightweight design make it easy to integrate into a wide range of applications, including industrial and commercial settings.
Top product features:
- Split-Phase motor design for efficient operation
- Open Drip Proof (ODP) motor enclosure for protection against dust and moisture
- Continuous duty cycle for uninterrupted operation
Top product applications:
- Air Purifier
- Dust Collector
- Industrial Fan
Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/12 hp HP, Nameplate RPM 850 RPM, No. of Speeds 1, Voltage 115V AC, 3.1 A Full Load Amps, 56CZ Frame, 60 Hz Hz, Motor Service Factor 1.4, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type C-Face, Motor Frame Material Steel, Motor Mounting Position All Angle, Shaft Length 2 7/16 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.30
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 22.09
Product info last updated on March 21, 2026 10:14pm UTC
Category: Motors
