Belt Drive Mtr, SplitPh, ODP, 1/4HP, 1725rpm MPN:6XH49BG
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2285254

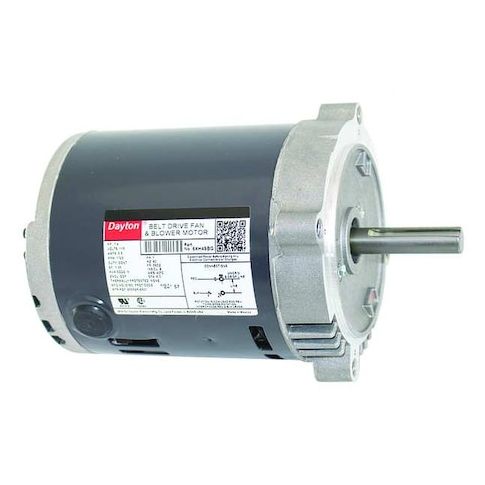

Belt Drive Mtr, SplitPh, ODP, 1/4HP, 1725rpm
This Dayton Belt Drive Motor is a reliable and efficient solution for various applications, including fans and blowers. With a single-phase design and 1/4 horsepower capacity, it provides continuous operation at 1725 RPM, making it ideal for applications requiring consistent airflow. The motor's open drip-proof enclosure and steel frame ensure durability and easy maintenance. Its compact size and CW/CCW rotation make it suitable for a range of mounting positions, including all-angle mounting. Perfect for industrial and commercial use, this motor is a cost-effective option for fans, blowers, and other equipment that require a reliable and efficient motor.
Top product features:
- It has a belt drive design.
- It has a split-phase motor design.
- It has an open drip-proof motor enclosure design.
Top product applications:
- HVAC systems for residential and commercial use
- Industrial fans and blowers for manufacturing and processing facilities
- Computer room air conditioning (CRAC) units and data center cooling systems
Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, 8.6 A Full Load Amps, 56CZ Frame, 60 Hz Hz, Motor Service Factor 1.35, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type C-Face, Motor Frame Material Steel, Motor Mounting Position All Angle, Shaft Length 2 1/4 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.32
- Package Width: 8.25
- Package Height: 11.00
- Package Weight: 13.00
Product info last updated on February 21, 2026 11:05pm UTC
Category: Motors
