Agricultural Fan Motor, Capacitor-Start/Run, 1/2 HP, 115/208-230V AC, 1, 725 Nameplate RPM, 56 Frame MPN:5JKW9
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2283391
Agricultural Fan Motor, Capacitor-Start/Run, 1/2 HP, 115/208-230V AC, 1, 725 Nameplate RPM, 56 Frame

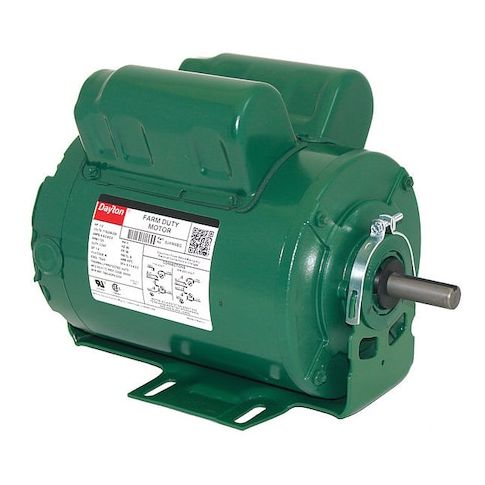

This 1/2 HP Agricultural Fan Motor from Dayton is designed for farm duty applications, providing reliable and efficient performance in a wide range of agricultural settings. With a capacitor-start/run design and a nameplate RPM of 1,725, this motor is ideal for powering large fans, blowers, and other equipment used in farming and agriculture. Its totally enclosed air-over design and steel frame ensure durability and long-lasting operation, even in harsh environments. Suitable for continuous duty cycles, this motor is perfect for applications such as grain drying, ventilation, and cooling systems.
Top product features:
- Totally Enclosed Air-Over Motor Enclosure Design
- Motor Thermal Protection is Automatic
- Motor Shaft Rotation is Both Clockwise and Counterclockwise
Top product applications:
- Agricultural ventilation systems
- Dairy farm ventilation systems
- Greenhouse climate control systems
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 4.6/2.6-2.4 A, 56 Frame, 60 Hz Hz, Motor Service Factor 1.4, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.82
- Package Width: 7.75
- Package Height: 10.00
- Package Weight: 40.50
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on January 31, 2026 8:51am UTC
Category: Motors
