IEC Magnetic Contactor, No Auxiliary Contacts, 24V DC, 4 P, Non-Reversing MPN:6ECE6

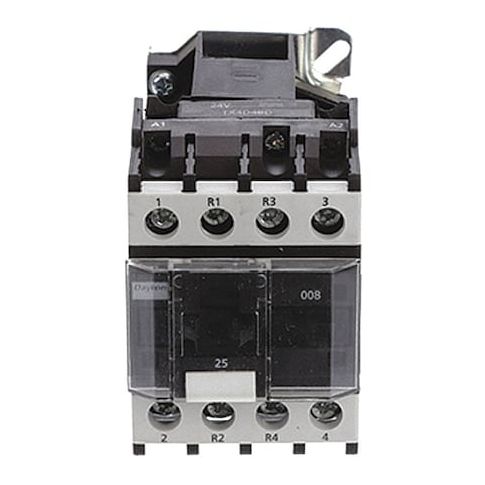

• DAYTON IEC Magnetic Contactor

  - The DAYTON IEC Magnetic Contactor is an IEC-standard, electrically operated switching device rated for operation within the specified voltage ranges. It operates with a 24 V DC coil as specified and conforms to the described configuration of four poles. Key features

• - Coil Voltage: 24 V DC
• - Action / Reversing: Non-Reversing / Reversing: No
• - Poles: 4
• - Main Contact Configuration: 2NC/2NO
• - Embedded Surge Suppressor: No
• - Enclosure: No Enclosure
• - Full Load Amps (Inductive / Resistive): 25 A / 40 A
• - Full Load Current (Inductive / Resistive): 25 A / 40 A
• - HP @ 120V / 230V / 240V: 2 hp / 3 hp / 3 hp
• - Hz: 50/60 frequency range supported
• - Standards: Certifications indicate compliance but do not guarantee performance under all conditions
• - Dimensions (HxWxD): approximately listed size
• actual performance may vary slightly depending on installation
• - Item type: IEC Magnetic Contactor
