Condenser Fan Motor, 1/2 hp MPN:4M062
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2237234

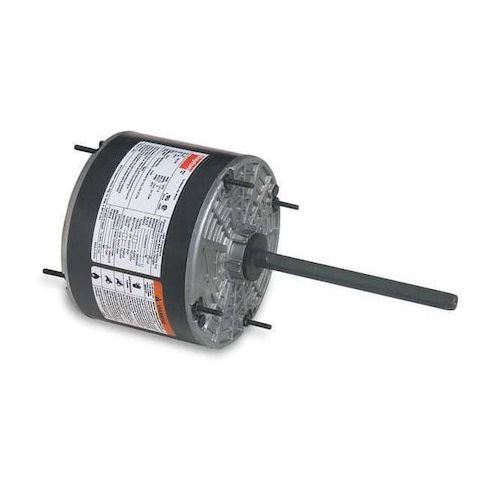

Condenser Fan Motor, 1/2 hp
Upgrade your HVAC system with the Dayton 1/2 hp Condenser Fan Motor, designed for reliability and efficiency. Suitable for single-phase applications, this motor features a permanent split capacitor design, allowing for smooth and quiet operation. With a nameplate RPM of 1,075, it provides optimal airflow and cooling performance. Its compact 48YZ frame and totally enclosed air-over design ensure durability and protection from environmental factors. Ideal for use in commercial and residential settings, this motor is perfect for applications such as rooftop units, split systems, and chillers, providing continuous operation and maximum efficiency in a wide range of ambient temperatures.
Top product features:
- Permanent Split Capacitor motor design for efficient operation
- Two-speed operation for adjustable cooling performance
- Totally Enclosed Air-Over motor enclosure for protection from dust and moisture
Top product applications:
- Air Conditioning Condenser Fan
- HVAC System Fan Motor
- Packaged Rooftop Air Conditioning Unit Fan
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 2, Voltage 208-230V AC, 2.9 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Mounting Position Vertical Shaft Up/Shaft Down, Shaft Length 6 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 7.00
- Package Height: 7.00
- Package Weight: 21.14
Product info last updated on February 11, 2026 4:58am UTC
Category: Motors
