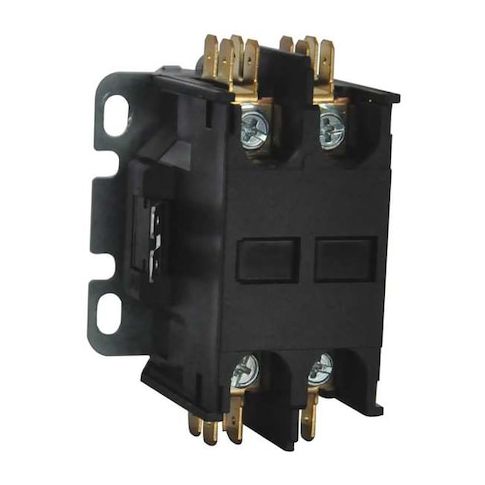

Definite Purpose Magnetic Contactor, 120V AC, 2 P, Non-Reversing, 1 Phase, Box Lug MPN:6GNU9
Free Shipping
In Stock
The Dayton 6GNU9 Definite Purpose Magnetic Contactor is a reliable and efficient solution for controlling power flow in heavy-duty applications. This industrial-grade device is designed to manage and automate machinery operations in various sectors, including HVAC, data processing, and manufacturing. With its non-reversing action, it ensures a constant current flow direction, making it ideal for applications that require precise control. Its durable silver tin oxide contacts and high operating durability ratings make it a long-lasting investment, capable of withstanding up to 200,000 electrical operations and 500,000 mechanical operations under normal conditions.
Top product features:
- Operates by responding to electrical impulses, allowing or interrupting power supply based on the need.
- Maintains a constant current flow direction.
- Rated for handling continuous currents when controlling inductive loads (up to 40A) or resistive/heating loads (up to 50A).
Top product applications:
- HVAC
- Data processing
- Manufacturing
The DAYTON - 6GNU9 is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.
- Action: Non-Reversing – The contactor maintains a constant current flow direction.
- Coil Voltage: Rated for operation at a coil voltage of 120V AC.
- Contact Material: Made from Silver Tin Oxide which influences conductivity, durability, and resistance to corrosion.
- Electrical Operating Durability: Electrical operating durability is rated for up to 200,000 operations under normal conditions.
- Frequency: Compatible with electrical cycle frequencies of 50/60 Hz
- Full Load Amps-Inductive & Resistive: Rated for handling continuous currents when controlling inductive loads (up to 40A) or resistive/heating loads (up to 50A).
- Horsepower @ Single Phase - 120V & 240V AC : Rated for control of power output during single-phase operation with voltages either at 120 volts (up to 2hp) or at 240 volts (up to 3hp).
- Mechanical Operating Durability: Mechanical operating durability is rated for up to500,000 operations under normal industrial conditions.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 2.80
- Package Height: 2.30
- Package Weight: 0.20
