Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/208-230V AC Voltage, 143TC Frame MPN:5GD68
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2221046

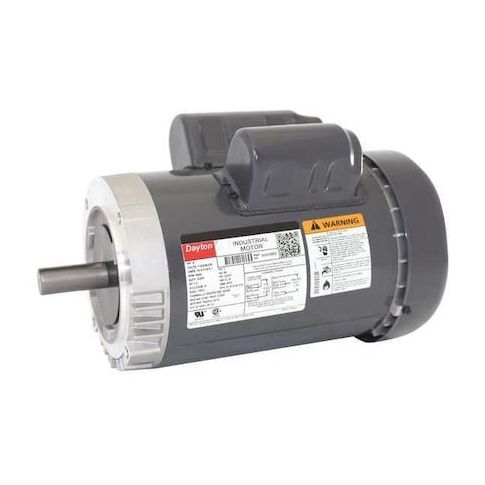

Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/208-230V AC Voltage, 143TC Frame
This 2 hp capacitor-start/run general purpose motor from Dayton is a reliable and efficient solution for a variety of applications. Suitable for use in 115/208-230V AC voltage environments, it operates at 3,450 RPM and has a continuous duty cycle. The motor's totally enclosed fan cooled design keeps it cool and quiet, while its rigid base and C-face mounting type provide a secure and stable installation. Ideal for use in industrial settings, this motor is perfect for applications such as manufacturing, material handling, and HVAC systems, offering a cost-effective and long-lasting solution for your power needs.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor reliability and reduced maintenance
- Continuous duty cycle for uninterrupted operation
- Single Phase motor design for easy installation and reduced electrical complexity
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 19.5/10.8-9.7 A, 143TC Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 32.00
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on March 22, 2026 1:18pm UTC
Category: Motors
