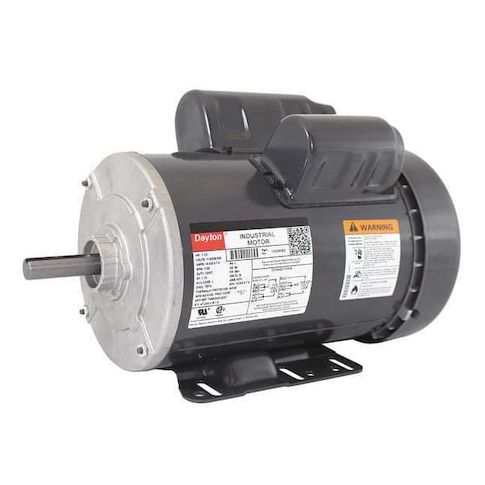

Capacitor-Start/Run General Purpose Motor, 1 1/2 hp HP, 115/208-230V AC Voltage, 56H Frame MPN:1K066
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2211921
Capacitor-Start/Run General Purpose Motor, 1 1/2 hp HP, 115/208-230V AC Voltage, 56H Frame
This 1.5 horsepower capacitor-start/run general purpose motor is a reliable and efficient solution for various applications. Suitable for use in a wide range of environments, it can operate at 115/208-230V AC voltage and 1,725 RPM. The motor is designed for continuous duty cycles and features a totally enclosed fan-cooled enclosure for added protection. Its compact 56H frame makes it easy to integrate into existing systems. Ideal for use in commercial and industrial settings, this motor is perfect for applications such as pumps, fans, and conveyors. Its high service factor and durable design ensure long-lasting performance and minimal maintenance.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor durability and reduced maintenance
- Continuous duty cycle for reliable and consistent operation
- Capacitor-Start/Run motor design for efficient and quiet operation
Top product applications:
- General purpose pumps
- Conveyor systems
- Fans and blowers
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 14.4/8-7.2 A, 56H Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 32.00
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on February 25, 2026 11:29pm UTC
Category: Motors
