Split-Phase Belt Drive Motor, 1/4 HP, 56Z Frame, 115V AC Voltage, 1, 725 Nameplate RPM MPN:5K977
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2204072

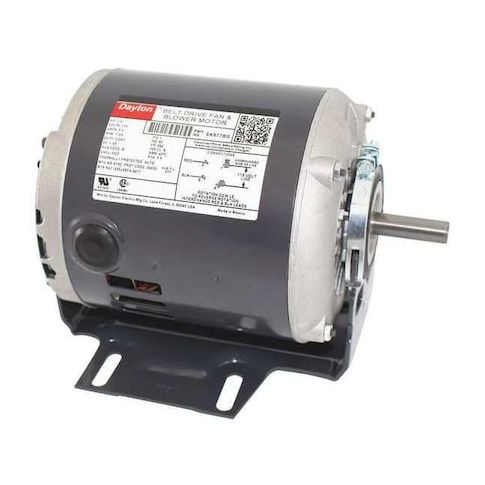

Split-Phase Belt Drive Motor, 1/4 HP, 56Z Frame, 115V AC Voltage, 1, 725 Nameplate RPM
This Dayton 1/4 HP split-phase belt drive motor is designed for a variety of applications, including fans and blowers, where a reliable and efficient motor is required. Its 1,725 nameplate RPM provides a high level of performance, while its 115V AC voltage and 5.3 A full load amps make it suitable for a range of electrical systems. The motor's open drip-proof enclosure and cradle base mounting type provide added protection and flexibility. Ideal for continuous duty cycles, this motor is perfect for use in residential and commercial settings, including HVAC systems, ventilation systems, and industrial fans.
Top product features:
- Split-Phase Belt Drive Motor design provides a single-phase power supply capability
- Motor operates at 1,725 Nameplate RPM to meet specific application speed requirements
- Open Drip Proof motor enclosure design protects against dust and moisture exposure
Top product applications:
- HVAC Systems
- Pump Applications
- Conveyors
Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, 5.3 A Full Load Amps, 56Z Frame, 60 Hz Hz, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel, Motor Mounting Position All Angle, Shaft Length 1 1/2 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.00
- Package Width: 9.13
- Package Height: 9.63
- Package Weight: 12.30
Product info last updated on February 4, 2026 2:23am UTC
Category: Motors
