Capacitor-Start/Run General Purpose Motor, 1 1/2 hp HP, 115/208-230V AC Voltage, 56HC Frame MPN:1K082
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2201753

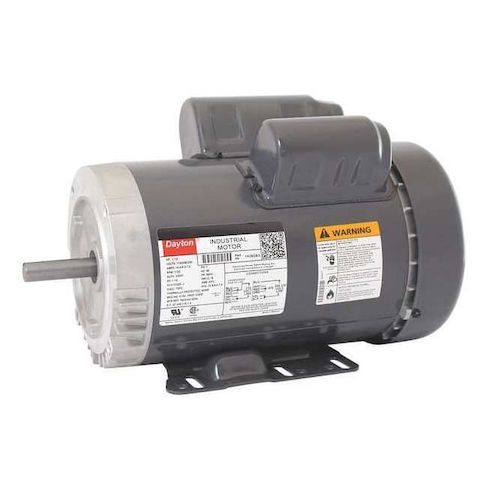

Capacitor-Start/Run General Purpose Motor, 1 1/2 hp HP, 115/208-230V AC Voltage, 56HC Frame
The Dayton Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for a variety of applications. With a 1.5 horsepower rating and 1,725 RPM, this motor is suitable for use in commercial and industrial settings, such as pumps, fans, and conveyor systems. Its totally enclosed fan-cooled design provides excellent protection from dust and moisture, while its single-phase design makes it easy to install and maintain. Additionally, the motor's continuous duty cycle and B insulation class ensure reliable operation in a wide range of temperatures, making it an ideal choice for demanding applications.
Top product features:
- Capacitor-start/run design for improved efficiency and reliability
- Totally enclosed fan-cooled motor for reduced noise and increased durability
- Continuous duty cycle for uninterrupted operation
Top product applications:
- Pump applications
- Fans and blowers
- Conveyor systems
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 14.4/8-7.2 A, 56HC Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 32.00
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on March 25, 2026 8:48pm UTC
Category: Motors
