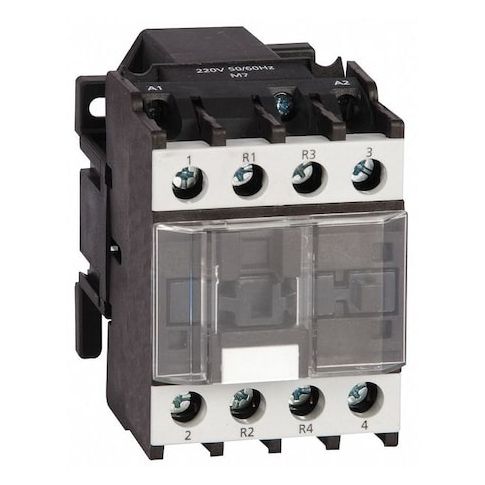

IEC Magnetic Contactor, No Auxiliary Contacts, 120V AC, 4 P, Non-Reversing, Screw MPN:6EAY6
Free Shipping
In Stock
The Dayton IEC Magnetic Contactor is a reliable and efficient control device designed for standard IEC applications. With a non-reversing, 4-pole configuration and a 120V AC coil, it provides precise control over motors and other loads. This device is ideal for use in industrial settings where standardized sizing and interchangeability are preferred. Its compact design and screw terminal connections make it easy to integrate into existing systems. The IEC Magnetic Contactor is suitable for applications requiring high current ratings and is rated for operation without an enclosure, making it a versatile and convenient solution for a wide range of control needs.
Top product features:
- The IEC Magnetic Contactor is a non-reversing device.
- The IEC Magnetic Contactor has 4 poles.
- The IEC Magnetic Contactor is rated for operation without an enclosure.
Top product applications:
- Standard IEC applications where standardized sizing and interchangeability are preferred
- Industrial control systems that require a non-reversing control device with a 4-pole configuration
- Applications where a 120 V AC coil and 50/60 Hz rating are required
The IEC Magnetic Contactor is a non-reversing, 4-pole control device with a 120 V AC coil and a 50/60 Hz rating. It has no auxiliary contacts and no embedded surge suppressor, and it is rated for operation without an enclosure (if applicable) or no enclosure is provided. This configuration supports standard IEC applications where standardized sizing and interchangeability are preferred.
- Item: IEC Magnetic Contactor
- - Action / Reversing: Non-Reversing (Reversing: No)
- - Poles: 4
- - Main Contact Configuration: 2NC/2NO
- - Auxiliary Contacts: No
- - Coil Voltage: 120 V AC
- - Frequency: 50/60 Hz
- - Full Load Amps: Inductive 25 A, Resistive 40 A
- - HP @ 120V / 230V / 240V: 2 hp
- 3 hp
- 3 hp
- - Dimensions: Height 2.2 in, Width 2.2 in, Depth 3.75 in
- - Enclosure / NEMA: No Enclosure
- - Standards: CSA, UL Listed
- - Terminal Connection Type: Screw
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.30
- Package Width: 3.70
- Package Height: 2.50
- Package Weight: 0.35
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
