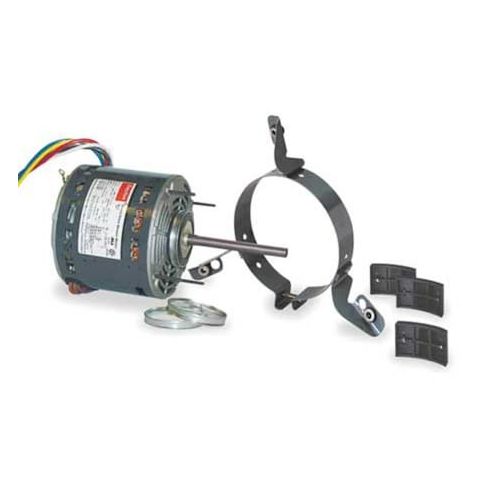

Motor, PSC, 3/4hp, 1075/4, 208-230v, Ring/Std MPN:7E676
Motor, PSC, 3/4hp, 1075/4, 208-230v, Ring/Std
This Dayton PSC motor is a reliable and efficient solution for various applications, including fans and blowers. With a 3/4 horsepower rating and 1,075 RPM, it provides the necessary power and speed for demanding tasks. Its permanent split capacitor design ensures smooth operation and long motor life. Suitable for use in a range of environments, this motor can withstand temperatures up to 40°C and can be mounted in any direction, making it ideal for installation in tight spaces. Its compact design and durability make it a great choice for industrial and commercial settings.
Top product features:
- Permanent Split Capacitor motor design
- Runs at 1,075 RPM
- Has a 48YZ frame motor enclosure design
Top product applications:
- Industrial ventilation system
- Commercial HVAC system
- Residential HVAC system
Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 4, Voltage 208-230V AC, 6.1-5.8 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Mounting Position All Angle, Shaft Length 6 in, Shaft Dia. 1/2 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 195.60
- Package Width: 98.40
- Package Height: 90.00
- Package Weight: 267.60
Product info last updated on February 1, 2026 11:02am UTC
Category: Motors
