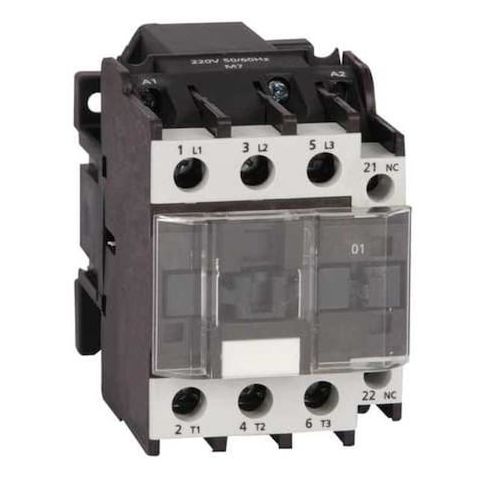

IEC Magnetic Contactor, 1NO, 240V AC, 3 P, Non-Reversing, Screw MPN:6EAW0
Free Shipping
In Stock
The DAYTON IEC Magnetic Contactor is a reliable and efficient switching solution for a wide range of applications. With its 3-pole design and 240V AC coil, it's perfect for use in industrial settings, such as controlling motors, pumps, and other equipment. The non-reversing functionality ensures safe and reliable operation, while the screw terminals provide easy installation. Rated for use with motors up to 7.5 HP, this contactor is ideal for applications such as HVAC systems, conveyor belts, and material handling equipment. Its compact design and CSA/UL listing make it a great choice for any industry requiring a reliable magnetic contactor.
Top product features:
- Operates with non-reversing functionality
- Switches within specified electrical parameters
- Features one normally open auxiliary contact
Top product applications:
- Motor Control in Industrial Automation
- Use as a motor starter to control the operation of electric motors in industrial automation applications.
- Use in Control Panels
The DAYTON IEC Magnetic Contactor is an IEC-standard, electrically operated switch rated for switching within specified electrical parameters. It is a 3-pole device with a 240 V AC coil, operates with non-reversing functionality, and screw terminals, featuring one normally open auxiliary contact.
- Action: operates with non-reversing functionality
- - Poles: 3
- - Coil Voltage: 240 V AC
- - Auxiliary Contacts: 1 NO (Auxiliary Contact Form: 1NO)
- - Embedded Surge Suppressor: No
- - Frequency: rated for operation at 50/60 Hz frequencies
- - Full Load Amps: rated for continuous operation at specified current ratings under typical load conditions (Inductive 25 A / Resistive 40 A)
- - HP Ratings: rated for use with motors up to the specified horsepower ratings at corresponding voltages (120 V: 2 hp
- 230 V: 3 hp
- 240 V: 3 hp
- 208 V: 5 hp
- 240 V: 7.5 hp
- 480 V: 15 hp
- 575 V: 20 hp)
- - Dimensions: 2.2 in W × 2.2 in H × 3.75 in D
- - Standards: CSA, UL Listed
- - Terminal Connection Type: Screw
- - Reversing: No
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.30
- Package Width: 3.70
- Package Height: 2.50
- Package Weight: 0.05
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
