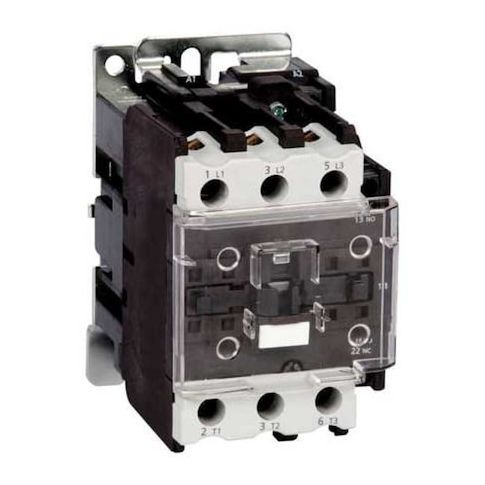

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Non-Reversing, Screw MPN:6EAX7

• The DAYTON IEC Magnetic Contactor is an electrically operated switching device that controls power circuits per IEC standards. It uses an electromagnetic coil to open or close its main contacts and is configured as a non-reversing, 3-pole unit with a 120V AC coil. Includes two auxiliary contacts (1NO/1NC) and screw terminals

• no embedded surge suppressor or enclosure included.

  Key features

• - Action: Non-Reversing
• - Poles: 3
• - Auxiliary contacts: 2 (1NO/1NC)
• - Coil voltage: 120 V AC
• - Auxiliary contact form: 1NC/1NO
• - Terminal connection: Screw
• - Enclosure: No Enclosure
• - Embedded surge suppressor: No
• - Frequency: 50/60 Hz
• - Full Load Amps: Inductive 95 A
• Resistive 110 A
• - HP @ 1 Phase: 120V: 7.5 hp
• 240V: 15 hp
• - HP @ 3 Phase: 208V: 20 hp
• 240V: 25 hp
• 480V: 60 hp
• 600V: 60 hp
• - Standards: CSA, UL Listed
• - Dimensions: Width 3.34 in
• Height 3.34 in
• Depth 4.96 in
