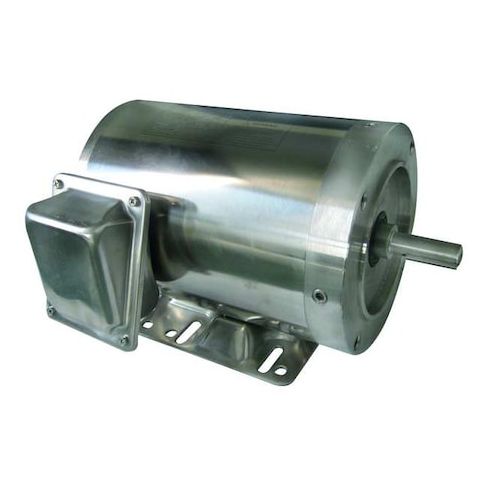

Washdown Motor, 3 Ph, TENV, 1 HP, 1740 rpm MPN:6WY38
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2127465
Washdown Motor, 3 Ph, TENV, 1 HP, 1740 rpm
This 1 HP, 3-phase washdown motor from Dayton is designed for use in harsh environments where high sanitation is required. With a 1740 RPM nameplate speed and 1.15 service factor, it can operate continuously in temperatures up to 40°C. Its totally enclosed, non-ventilated (TENV) design protects against dust and water ingress, making it ideal for use in food processing, pharmaceutical, and other washdown applications. Its high efficiency and reliability also make it a cost-effective choice for a wide range of industrial processes, including conveyor systems, pumps, and mixers.
Top product features:
- Three-phase design for efficient power transmission
- Totally Enclosed Non-Ventilated (TENV) motor enclosure for protection against environmental factors
- Continuous duty cycle for uninterrupted operation
Top product applications:
- Pump for a water treatment plant
- Food processing equipment
- Chemical processing machinery
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,740 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.0/1.5 A, 56HC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.20
- Package Width: 11.40
- Package Height: 10.20
- Package Weight: 44.35
Product info last updated on February 5, 2026 4:28pm UTC
Category: Motors
