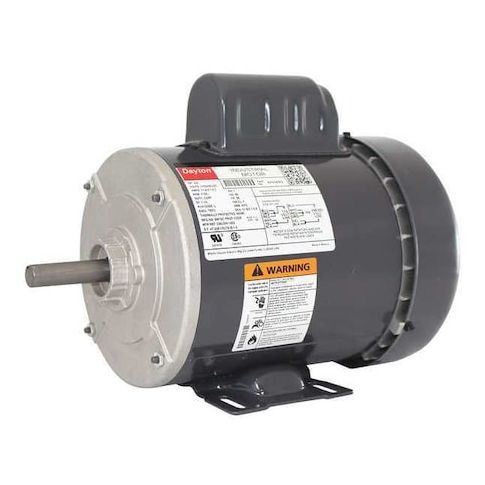

Capacitor-Start General Purpose Motor, 3/4 hp HP, 115/208-230V AC Voltage, 56 Frame MPN:6K938
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2127264
Capacitor-Start General Purpose Motor, 3/4 hp HP, 115/208-230V AC Voltage, 56 Frame
This 3/4 hp capacitor-start general purpose motor is designed for a wide range of applications, including industrial and commercial use. Its single-phase design and 1,725 RPM nameplate speed make it suitable for various tasks, such as conveying, pumping, and material handling. The motor's totally enclosed fan-cooled design provides reliable operation in a variety of environments, while its continuous duty cycle and 1.15 service factor ensure efficient performance. With a compact 56 frame size and 115/208-230V AC voltage, this motor is easy to integrate into existing systems, making it an ideal choice for industries that require reliable and efficient power.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and durable operating environment.
- Single Phase, Capacitor-Start motor design allows for efficient and reliable operation.
- Usable at 208V, 60 Hz frequency enables compatibility with a variety of electrical systems.
Top product applications:
- Home Air Conditioning Units
- Pumps for small water treatment plants
- Fans for commercial ventilation systems
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 11.4/5.7-5.7 A, 56 Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 31.07
Product info last updated on January 23, 2026 9:54am UTC
Category: Motors
