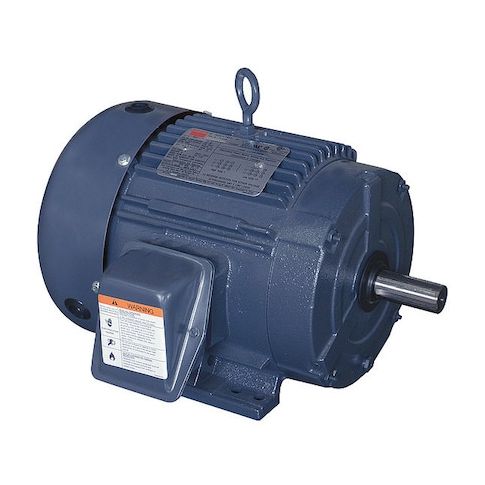

Three-Phase General Purpose Motor, 1 1/2 HP, 182T Frame, 230/460V AC Voltage, 1180 Nameplate RPM MPN:194142.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2124385
Three-Phase General Purpose Motor, 1 1/2 HP, 182T Frame, 230/460V AC Voltage, 1180 Nameplate RPM
This 1.5 HP three-phase general purpose motor from Dayton is designed for heavy-duty applications requiring continuous duty operation. With a nameplate RPM of 1180 and a rigid base motor mounting type, it provides reliable power and stability. The totally enclosed fan cooled motor enclosure design ensures efficient cooling and protection from harsh environments. Suitable for use in a variety of industries, including manufacturing, processing, and material handling, this motor offers a high level of efficiency and durability, making it an ideal choice for applications requiring high performance and long lifespan.
Top product features:
- Three-phase operation allows for efficient use of power in industrial applications.
- Totally enclosed fan cooled motor enclosure design helps to prolong the motor's lifespan by reducing dust and moisture exposure.
- Ball motor bearings provide a low-friction and long-lasting solution for motor shaft rotation.
Top product applications:
- Industrial conveyor systems
- Pump and fan drives
- Machine tool drives
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 1180, Frame 182T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 4.7/2.4 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.00
- Package Width: 15.00
- Package Height: 14.50
- Package Weight: 107.00
Product info last updated on February 2, 2026 6:25pm UTC
Category: Motors
