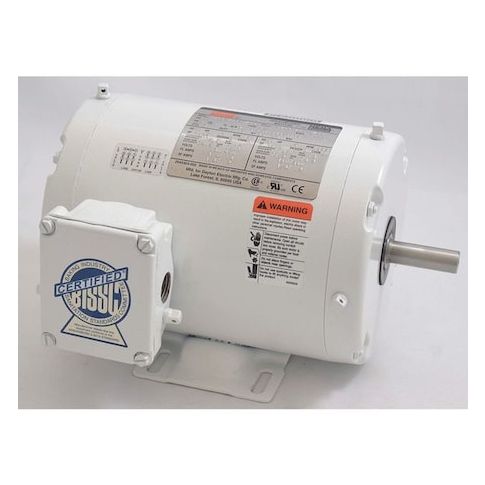

Washdown Motor, 3 Ph, TENV, 1/2 HP, 1725 rpm MPN:1TTC3
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2113002
Washdown Motor, 3 Ph, TENV, 1/2 HP, 1725 rpm
The Dayton 3-Phase Washdown Motor is a reliable and efficient solution for demanding industrial applications. Designed for continuous operation in harsh washdown environments, this motor features a totally enclosed non-ventilated (TENV) design, ensuring protection from water and dust. With a 1/2 HP rating and 1725 RPM, it provides the power and speed needed for high-pressure washdown systems, food processing, and other applications requiring frequent cleaning. Its rigid base and horizontal mounting position make it easy to integrate into existing systems. With a long lifespan and minimal maintenance required, this motor is a cost-effective choice for industries that demand reliability and efficiency.
Top product features:
- Three-phase operation
- Totally Enclosed Non-Ventilated (TENV) design
- Continuous duty cycle
Top product applications:
- Food Processing
- Water Treatment Plants
- Pharmaceutical Manufacturing
Washdown Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,750 RPM, Voltage 230/460V AC, Full Load Amps 1.6/0.8 A, 56 Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.30
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 26.00
Product info last updated on March 30, 2026 8:55am UTC
Category: Motors
