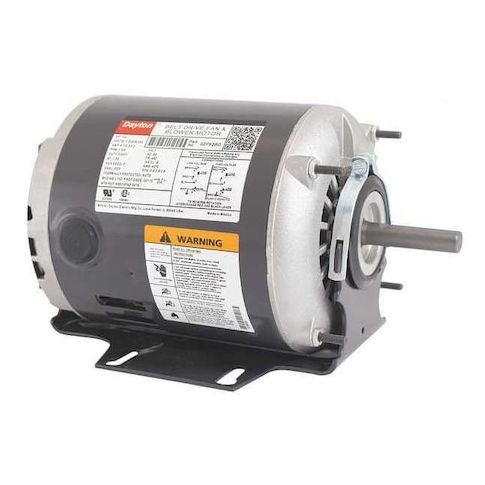

Split-Phase Belt Drive Motor, 1/4 HP, 48Z Frame, 115/208-230V AC Voltage, 1, 725 Nameplate RPM MPN:3ZP92
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2096771
Split-Phase Belt Drive Motor, 1/4 HP, 48Z Frame, 115/208-230V AC Voltage, 1, 725 Nameplate RPM
The Dayton Split-Phase Belt Drive Motor is a reliable and efficient solution for a variety of applications, including fans and blowers. With a continuous duty cycle and 1.35 service factor, this motor can handle demanding tasks. Its 1/4 HP rating and 1,725 RPM nameplate speed make it suitable for low-to-medium load applications. The motor's open drip-proof enclosure and cradle base mounting design provide easy installation and maintenance. The Dayton Split-Phase Belt Drive Motor is ideal for use in commercial and industrial settings, including HVAC systems, material handling, and ventilation systems. Its compact size and low weight make it easy to integrate into existing systems.
Top product features:
- Split-Phase motor design for efficient and reliable operation
- Motor shaft rotation in both clockwise and counterclockwise directions for versatile installation
- Open drip-proof enclosure design for protection against dust and water splashes
Top product applications:
- HVAC Fan Motor
- Industrial Fan Motor
- Appliance Motor
Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 4.7/2.2-2.3 A Full Load Amps, 48Z Frame, 60 Hz Hz, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel, Motor Mounting Position All Angle
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.32
- Package Width: 8.25
- Package Height: 11.00
- Package Weight: 18.17
Product info last updated on February 2, 2026 10:55am UTC
Category: Motors
