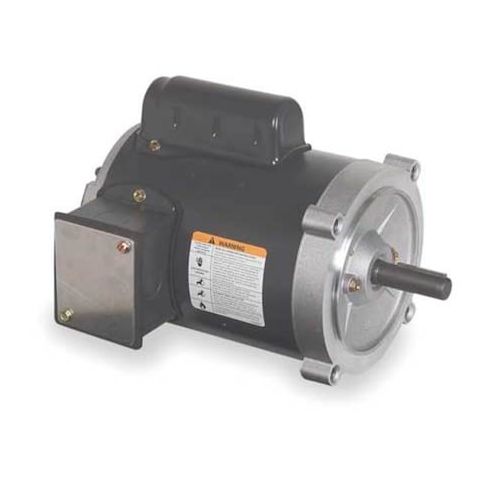

Capacitor-Start General Purpose Motor, 1/3 hp HP, 115/208-230V AC Voltage, 56C Frame MPN:5GD55
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2083146
Capacitor-Start General Purpose Motor, 1/3 hp HP, 115/208-230V AC Voltage, 56C Frame
This 1/3 horsepower, single-phase capacitor-start motor is designed for general purpose use in a variety of applications. Its compact 56C frame and totally enclosed non-ventilated design make it ideal for use in industrial settings, where a reliable and efficient motor is essential. With a continuous duty cycle and a service factor of 1.15, this motor can handle demanding tasks with ease. Its high speed of 3,460 RPM and low amp draw of 4.3/2.5-2.2 A make it suitable for use in a range of applications, including pumps, fans, and conveyor systems.
Top product features:
- Totally Enclosed Non-Ventilated design for protection from environmental factors
- Continuous duty cycle for uninterrupted operation
- Capacitor-start motor design for efficient starting and operation
Top product applications:
- Pumps and water circulation systems
- Fans and blowers for ventilation and air circulation
- Conveyors and material handling equipment
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/3 hp HP, Nameplate RPM 3,460 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 4.3/2.5-2.2 A, 56C Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.30
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 16.75
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on February 6, 2026 10:29pm UTC
Category: Motors
