DC Motor, PM, TEFC, 1/2 HP, 1750 rpm, 180VDC MPN:4Z524A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2072962

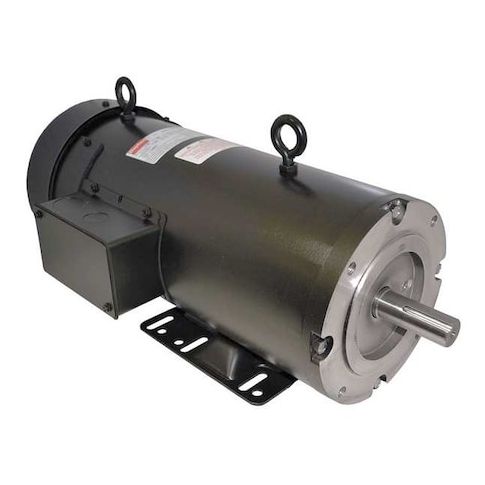

DC Motor, PM, TEFC, 1/2 HP, 1750 rpm, 180VDC
This high-performance DC motor from Dayton is designed for demanding applications that require reliable and efficient operation. With a 1/2 HP rating and 1750 rpm, it delivers consistent speed and torque in a compact 56C frame. Suitable for use in a wide range of industries, including manufacturing, material handling, and automation, this motor excels in applications where continuous duty cycles and high reliability are essential. Its totally enclosed fan-cooled design and ball bearings ensure long lifespan and minimal maintenance, making it an ideal choice for applications such as conveyor systems, robotic arms, and packaging machinery.
Top product features:
- Totally Enclosed Fan-Cooled design provides a dust-free and moisture-free environment for the motor.
- Continuous operation at 1750 rpm allows for sustained performance in demanding applications.
- Ball bearings ensure smooth and quiet operation, reducing wear and tear on the motor.
Top product applications:
- Material Handling Equipment
- Robotics and Automation
- Electric Vehicle Charging Systems
DC Permanent Magnet Motor, Motor Design Permanent Magnet, 1/2 HP, Nameplate RPM 1,725 RPM, Voltage 180V DC, 2.5 A Full Load Amps, 56C Frame, Full Load Torque 27 in-lb, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base, Removable Base Yes, Shaft Dia. 5/8 in, Motor Bearings Ball, Shaft Length 1 7/8 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.20
- Package Width: 8.30
- Package Height: 23.70
- Package Weight: 24.05
Product info last updated on February 1, 2026 1:25am UTC
Category: Motors
