Washdown Motor, 3 Ph, TEFC, 3 HP, 1765 rpm MPN:5XAU5BG
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2070643

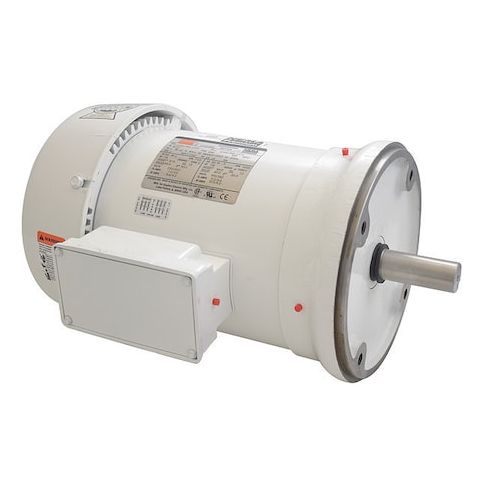

Washdown Motor, 3 Ph, TEFC, 3 HP, 1765 rpm
This 3 HP, 1765 rpm washdown motor from Dayton is designed for use in harsh environments, with a totally enclosed fan-cooled (TEFC) design that protects against dust and water. Suitable for continuous duty cycles, it operates at a maximum ambient temperature of 40 degrees C and features a steel frame for durability. Ideal for applications in food processing, pharmaceutical, and chemical industries, this motor provides reliable performance and long lifespan. Its compact size and NEMA Design B rating make it easy to integrate into existing systems, making it a valuable addition to any industrial operation.
Top product features:
- Three-phase operation
- Totally Enclosed Fan Cooled design
- Continuous duty cycle
Top product applications:
- Washdown Motor is suitable for use in food and beverage processing plants where a high level of cleanliness is required.
- Washdown Motor is ideal for use in pharmaceutical manufacturing facilities where a high level of hygiene is necessary.
- Washdown Motor is suitable for use in chemical processing plants where exposure to corrosive substances is a concern.
Washdown Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 1,765 RPM, Voltage 230/460V AC, Full Load Amps 7.6/3.8 A, 182TC Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Motor Mounting Position Horizontal, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 13.70
- Package Height: 14.00
- Package Weight: 65.35
Product info last updated on February 4, 2026 12:03am UTC
Category: Motors
