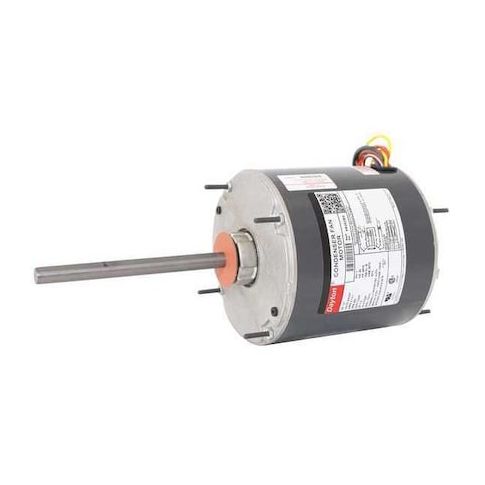

Condenser Fan Motor, 1/3 hp MPN:4M262BG
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2070372
Condenser Fan Motor, 1/3 hp
Upgrade your condenser fan with the Dayton 1/3 hp Condenser Fan Motor, designed for reliable performance in single-phase applications. This motor features a permanent split capacitor design, ensuring efficient operation and long lifespan. With a high nameplate RPM of 825, it provides optimal airflow for heating and cooling systems. Its compact 48YZ frame and totally enclosed air-over design make it perfect for tight spaces. Suitable for continuous duty cycles, this motor offers maximum reliability and efficiency, ideal for use in commercial and industrial settings, such as office buildings, restaurants, and warehouses.
Top product features:
- 1/3 hp motor provides sufficient power for condenser fan operation.
- Permanent Split Capacitor motor design ensures efficient and reliable operation.
- Totally Enclosed Air-Over motor enclosure protects internal components from dust and debris.
Top product applications:
- Air Conditioning Condenser Fan
- Commercial Refrigeration Condenser Fan
- Industrial Ventilation System Fan
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 825 RPM, No. of Speeds 1, Voltage 208-230V AC, 2.1/2.1 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Mounting Position Vertical Shaft Up/Shaft Down, Shaft Length 6 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.40
- Package Width: 11.00
- Package Height: 10.70
- Package Weight: 18.75
Product info last updated on March 31, 2026 8:46am UTC
Category: Motors
