Washdown Mtr, 3 Ph, TENV, 1-1/2 HP, 1740 rpm MPN:1TTB8
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2012245

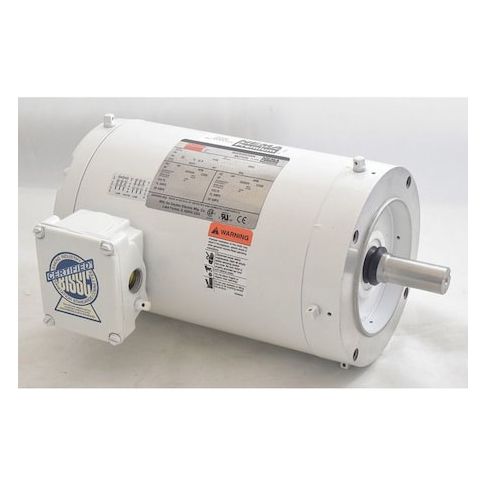

Washdown Mtr, 3 Ph, TENV, 1-1/2 HP, 1740 rpm
This 1.5 HP, three-phase washdown motor from Dayton is designed for demanding applications in harsh environments. With a totally enclosed, non-ventilated (TENV) design, it protects against dust, water, and other contaminants, making it ideal for use in food processing, pharmaceutical, and other industries where cleanliness is crucial. Its continuous duty cycle and NEMA Design B rating ensure reliable operation, even under heavy loads. The motor's compact size and C-face mounting design simplify installation, while its steel frame and Class F insulation provide long-lasting durability. Suitable for a wide range of applications, including conveyor systems, pumps, and mixers.
Top product features:
- Three-phase operation
- Totally Enclosed Non-Ventilated (TENV) design
- Continuous duty cycle
Top product applications:
- Water treatment plants
- Industrial laundries
- Food processing plants
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,750 RPM, Voltage 230/460V AC, Full Load Amps 4.3/2.1 A, 145TC Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face, Motor Mounting Position Horizontal, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 26.00
Product info last updated on March 11, 2026 4:45am UTC
Category: Motors
