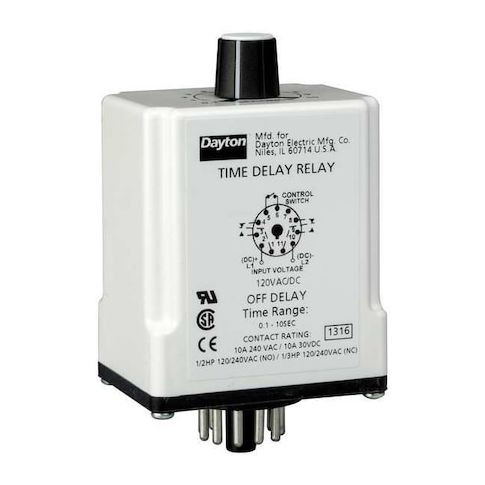

Single Function Time Delay Relay, Octal, Off Delay, 1 Functions 120V AC/DC, DPDT MPN:1EGC5
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2002314
Single Function Time Delay Relay, Octal, Off Delay, 1 Functions 120V AC/DC, DPDT
The Dayton Single Function Time Delay Relay is a versatile and reliable component for various applications. This octal-shaped relay features a DPDT contact form and can handle up to 10A of current at 240V AC or 30V DC. The adjustable potentiometer allows for precise timing settings between 1.8 seconds and 3 minutes, making it ideal for applications requiring delayed switching or timing control. Suitable for use in industrial automation, audio equipment, and medical devices, this relay offers reliable and efficient operation in a compact and easy-to-mount design.
Top product features:
- Adjustable time delay setting via potentiometer
- DPDT contact form for versatile switching applications
- Off delay function with a minimum setting of 1.8 seconds and a maximum setting of 3 minutes
Top product applications:
- Industrial Automation: The time delay relay can be used to control the timing of industrial processes, such as conveyor belt systems or robotic arms.
- Home Automation: The relay can be used to control lights, appliances, or security systems in a home, allowing for automated timing of events such as turning lights on and off.
- Medical Equipment: The time delay relay can be used in medical equipment, such as ventilators or dialysis machines, to control the timing of critical life-sustaining functions.
Single Function Time Delay Relay, Adjustment Method Potentiometer, Base Shape Octal, Coil Voltage 120V AC/DC, Contact Form DPDT, Contact Rating (AC) 10 A @ 240V, Contact Rating (DC) 10 A @ 30V, Current Rating 10 A, Number of Delay Functions 1, Delay Function Off Delay, Electrical Connection Socket, Flat Pin Width Not Applicable, IP Rating IP20, Input Voltage 120V AC/DC, Minimum Time Setting 1.8 sec, Maximum Time Setting 3 min, Number of Pins 11, Sealing Enclosed, Mounting Style Plug-In
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.20
- Package Width: 2.70
- Package Height: 2.10
- Package Weight: 0.30
Product info last updated on February 3, 2026 1:30am UTC
Category: Industrial Electrical Controls and Automation
