Washdown Motor, 3 Ph, TEFC, 5 HP, 3525 rpm MPN:2RKY8
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1993284

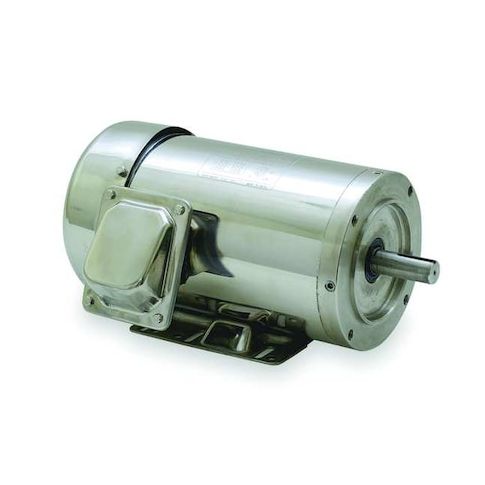

Washdown Motor, 3 Ph, TEFC, 5 HP, 3525 rpm
This 5 HP, 3-phase washdown motor from Dayton is designed for use in harsh environments where high pressure washdown is required. Its totally enclosed fan cooled (TEFC) design and NEMA Design B rating make it suitable for applications involving exposure to water and chemicals. The motor's 1.15 service factor and 40°C maximum ambient temperature ensure reliable operation in challenging conditions. Ideal for use in food processing, pharmaceutical, and chemical plants, this motor provides continuous duty operation and is available for immediate shipment. Its compact design and durable construction make it a reliable choice for demanding applications.
Top product features:
- Totally Enclosed Fan Cooled design
- Three-Phase motor design
- Continuous duty cycle
Top product applications:
- Food Processing
- Chemical Plant Equipment
- Pharmaceutical Manufacturing
Washdown Motor, Three Phase, Motor Design Three-Phase, 5 hp HP, Nameplate RPM 3,525 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 12.2/6.1 A, 184TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.00
- Package Width: 14.00
- Package Height: 13.00
- Package Weight: 150.00
Product info last updated on February 1, 2026 11:24am UTC
Category: Motors
