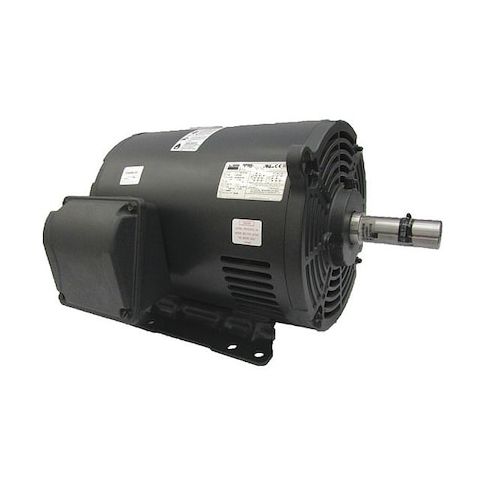

Three-Phase General Purpose Motor, 20 HP, 254/6T Frame, 230/460V AC Voltage, 1, 770 Nameplate RPM MPN:4GZC7
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1992934
Three-Phase General Purpose Motor, 20 HP, 254/6T Frame, 230/460V AC Voltage, 1, 770 Nameplate RPM
This 20 HP three-phase general purpose motor from Dayton is designed for a wide range of applications, including industrial processes, manufacturing, and commercial facilities. Built with a rigid base motor mounting type and open drip proof motor enclosure, it provides reliable operation in demanding environments. With a nameplate RPM of 1,770 and a maximum ambient temperature of 40 degrees C, it can handle continuous duty cycles with ease. Its high efficiency and ball motor bearings ensure minimal maintenance and reduced energy costs, making it an ideal choice for applications requiring high performance and reliability.
Top product features:
- Three-phase operation provides efficient power distribution.
- Ball bearings ensure smooth and quiet motor operation.
- Continuous duty capability allows for extended periods of use without overheating.
Top product applications:
- Industrial Pump Applications
- Textile Mill Machinery
- Paper Mill Machinery
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 20 HP, Nameplate RPM 1,770, Frame 254/6T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 48.5/24.3 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93 Percent, Continuous Duty, 1701-1800, CSA, UL, Includes Shaft Key
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.50
- Package Width: 27.25
- Package Height: 16.75
- Package Weight: 231.00
Product info last updated on January 31, 2026 9:58am UTC
Category: Motors
