Capacitor-Start General Purpose Motor, 3/4 hp HP, 115/208-230V AC Voltage, 56C Frame MPN:1K080
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1989391

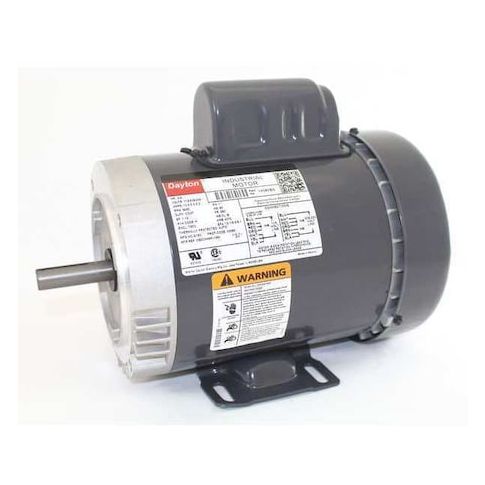

Capacitor-Start General Purpose Motor, 3/4 hp HP, 115/208-230V AC Voltage, 56C Frame
This 3/4 HP capacitor-start motor from Dayton is a reliable and efficient choice for a variety of applications. Suitable for use in 115/208-230V AC environments, it can operate continuously at 40°C in totally enclosed fan-cooled enclosures. The motor's single-phase design and 1.15 service factor make it ideal for general purpose use in industrial settings. Its compact 56C frame and CW/CCW rotation make it easy to install and integrate into existing systems. Perfect for applications such as pumps, conveyors, and fans, this motor provides a cost-effective and long-lasting solution for demanding industrial environments.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor durability and reduced maintenance
- Single Phase, Motor Design Capacitor-Start for efficient and reliable operation
- Continuous Duty Cycle for uninterrupted performance and increased productivity
Top product applications:
- Pumps
- Fans
- Compressors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 10.4/5.3-5.2 A, 56C Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 30.20
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on February 1, 2026 1:52am UTC
Category: Motors
