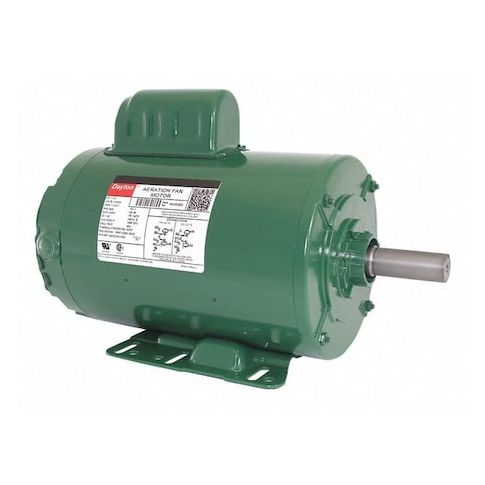

Capacitor-Start Aeration Fan Motor, 1 1/2 HP, 115/230V AC Voltage, 143TZ Frame, 3, 450 Nameplate RPM MPN:4K060
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1986098
Capacitor-Start Aeration Fan Motor, 1 1/2 HP, 115/230V AC Voltage, 143TZ Frame, 3, 450 Nameplate RPM
This 1.5 HP Capacitor-Start Aeration Fan Motor from Dayton is designed for farm duty applications, providing reliable performance in harsh environments. Its single-phase motor design and capacitor-start technology ensure efficient operation and long motor life. With a nameplate RPM of 3,450 and a maximum ambient temperature of 50°C, this motor is suitable for a wide range of applications, including ventilation systems, grain dryers, and livestock facilities. Its totally enclosed air-over design and rigid base mounting provide added protection and stability, making it an ideal choice for demanding farm environments.
Top product features:
- Totally Enclosed Air-Over Motor Enclosure Design
- Motor Shaft Rotation is Clockwise/Counterclockwise
- Single Phase Capacitor-Start Motor Design
Top product applications:
- Aeration systems in greenhouses
- Pig and poultry farms
- Dairy farms with aeration systems for manure management
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 1 1/2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 17.4/8.7 A, 143TZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 50 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.00
- Package Width: 18.50
- Package Height: 12.00
- Package Weight: 32.00
