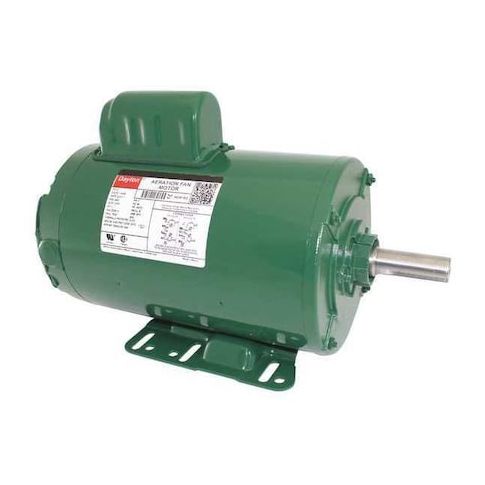

Capacitor-Start Aeration Fan Motor, 2 HP, 115/230V AC Voltage, 143TZ Frame, 3, 450 Nameplate RPM MPN:4K061
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1986089
Capacitor-Start Aeration Fan Motor, 2 HP, 115/230V AC Voltage, 143TZ Frame, 3, 450 Nameplate RPM
This 2 HP capacitor-start aeration fan motor from Dayton is designed for farm duty applications, providing reliable operation in harsh environments. Its single-phase design and 3,450 RPM nameplate speed make it suitable for various aeration and ventilation applications. The motor features a totally enclosed air-over design for protection from dust and moisture, and a rigid base mounting type for secure installation. With a continuous duty cycle and auto thermal protection, this motor ensures efficient and safe operation. Its compact size and robust construction make it an ideal choice for farm equipment and industrial ventilation systems.
Top product features:
- Totally Enclosed Air-Over motor enclosure design provides protection from dust and debris.
- Motor shaft rotation is clockwise/counterclockwise, allowing for flexible installation options.
- Capacitor-start design enables efficient starting and running of the motor.
Top product applications:
- Aeration systems in greenhouses
- Industrial ventilation systems
- Pumping systems for irrigation and water treatment
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 22.2/11.1 A, 143TZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 50 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 32.00
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on January 27, 2026 6:47pm UTC
Category: Motors
