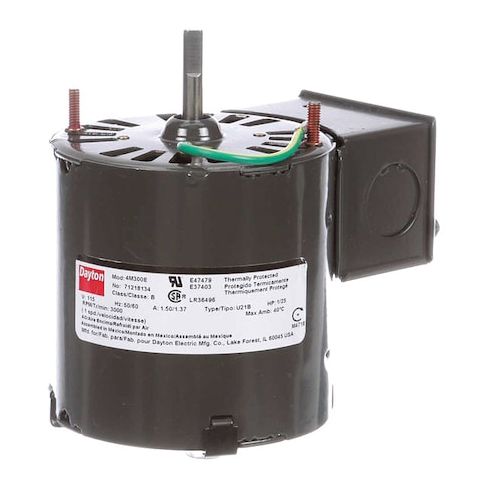

HVAC Motor, 1/25 HP, 3000 rpm, 115V, 3.3 MPN:71218134M
HVAC Motor, 1/25 HP, 3000 rpm, 115V, 3.3
This 1/25 HP, 3000 rpm HVAC motor from Dayton is a reliable and efficient solution for various applications. Suitable for use in single-phase systems, it features a shaded pole design and a compact 3.3 frame size. With a maximum ambient temperature of 40°C, it can withstand demanding environments. The motor's continuous duty cycle and auto thermal protection ensure reliable operation. Its compact size and low weight make it ideal for residential and commercial HVAC systems, as well as industrial applications such as air handling units and fans. Its high reliability and efficiency make it a cost-effective solution for a wide range of uses.
Top product features:
- Operates at 3000 rpm
- Has a motor design of shaded pole
- Has a continuous duty cycle
Top product applications:
- Air Conditioning Units
- Furnace Blower Motors
- Ductless Mini-Split Systems
HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/25 hp HP, Nameplate RPM 3,000 RPM, No. of Speeds 1, Voltage 115V AC, 1.37 A Full Load Amps, 3.3 Frame, Output Watts 30 W, 60/50 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 44.40
- Package Width: 22.80
- Package Height: 33.00
- Package Weight: 21.00
Product info last updated on March 5, 2026 4:31am UTC
Category: Motors
