Capacitor-Start General Purpose Motor, 1/2 hp HP, 115/208-230V AC Voltage, 56 Frame MPN:5UKF2
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1907814

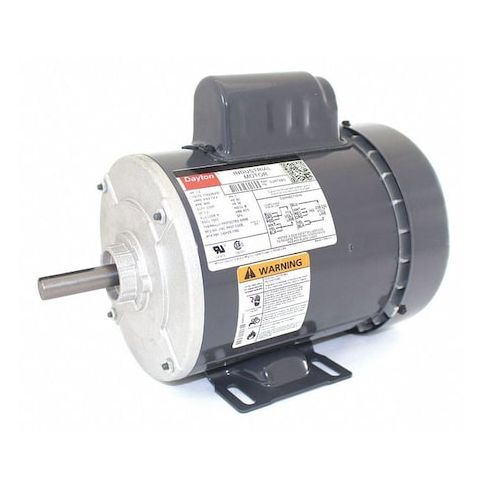

Capacitor-Start General Purpose Motor, 1/2 hp HP, 115/208-230V AC Voltage, 56 Frame
This 1/2 hp Capacitor-Start General Purpose Motor from Dayton is designed for a wide range of applications, including industrial and commercial use. Its single-phase, capacitor-start design provides efficient and reliable operation, while its totally enclosed fan-cooled (TEFC) enclosure protects the motor from dust and moisture. With a nameplate RPM of 3,450 and a continuous duty cycle, this motor is suitable for applications requiring high speed and reliability. Its compact size and rugged construction make it an ideal choice for use in various industries, including manufacturing, packaging, and material handling.
Top product features:
- Totally Enclosed Fan Cooled motor design for efficient heat dissipation
- Single Phase motor design with Capacitor-Start for reliable operation
- Continuous Duty Cycle for uninterrupted performance in demanding applications
Top product applications:
- Pumps
- Fans
- Power tools
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 8.6/4.1-4.4 A, 56 Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 32.00
Product info last updated on February 24, 2026 3:53pm UTC
Category: Motors
