Washdown Motor, 3 Ph, TENV, 1 HP, 1725 rpm MPN:1TTB7
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1869567

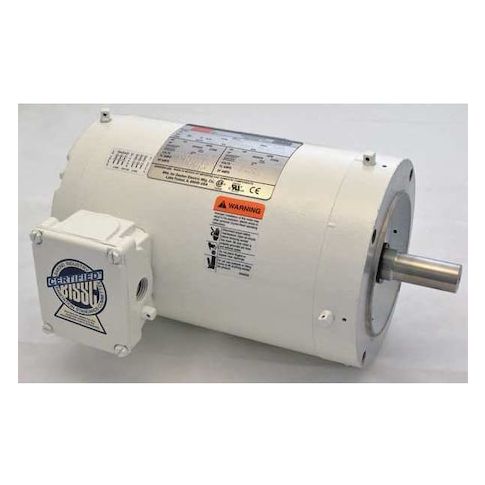

Washdown Motor, 3 Ph, TENV, 1 HP, 1725 rpm
This 1 HP, 3-phase washdown motor from Dayton is designed for use in harsh environments, featuring a totally enclosed non-ventilated (TENV) design to protect against water and dust. Its high service factor of 1.15 allows for continuous operation at maximum load, making it ideal for applications such as food processing, chemical manufacturing, and pharmaceutical production. With a nameplate RPM of 1750 and a 60 Hz frequency, this motor provides reliable and efficient operation. Its compact 143TC frame and CW/CCW rotation make it easy to integrate into existing systems, offering a cost-effective solution for demanding applications.
Top product features:
- Three-phase operation
- Totally Enclosed Non-Ventilated (TENV) design
- Continuous duty cycle
Top product applications:
- Food Processing Machinery
- Pumps and Pumping Systems
- Packaging Machinery
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,750 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.0/1.5 A, 143TC Frame, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face, Motor Mounting Position Horizontal, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.50
- Package Width: 11.50
- Package Height: 11.00
- Package Weight: 35.15
Product info last updated on February 12, 2026 3:31pm UTC
Category: Motors
