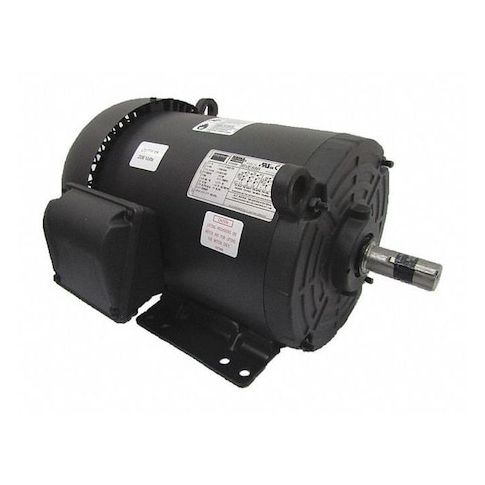

Three-Phase General Purpose Motor, 1 HP, 182/4 Frame, 230/460V AC Voltage, 1170 Nameplate RPM MPN:36VE88
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1860708
Three-Phase General Purpose Motor, 1 HP, 182/4 Frame, 230/460V AC Voltage, 1170 Nameplate RPM
This 1 HP three-phase general purpose motor from Dayton is designed for a wide range of applications, including industrial and commercial use. With a nameplate RPM of 1170 and a frame size of 182/4, this motor offers high efficiency and reliability. The totally enclosed fan-cooled design provides a safe and durable operation in harsh environments. Suitable for continuous duty, this motor is ideal for applications such as pumps, fans, and conveyor systems. Its high service factor and ball bearings ensure long motor life and reduced maintenance. The motor meets CE, CSA, and UL standards for international use.
Top product features:
- Three-phase operation for efficient power management
- Totally enclosed fan cooled motor enclosure for reliable cooling in harsh environments
- Ball bearings for smooth and quiet motor operation
Top product applications:
- Pumps and water treatment systems
- Fans and blowers for ventilation systems
- Industrial machinery and equipment
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 HP, Nameplate RPM 1170, Frame 182/4, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.2/1.6 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 82.5 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.75
- Package Width: 18.50
- Package Height: 12.50
- Package Weight: 65.00
