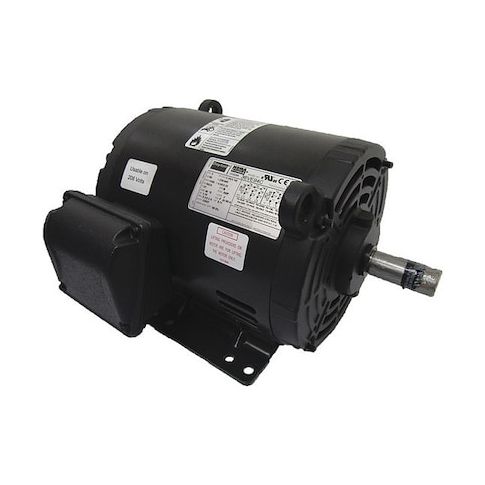

Three-Phase General Purpose Motor, 1 1/2 HP, 182/4 Frame, 230/460V AC Voltage, 1170 Nameplate RPM MPN:36VE94
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1860680
Three-Phase General Purpose Motor, 1 1/2 HP, 182/4 Frame, 230/460V AC Voltage, 1170 Nameplate RPM
This 1.5 HP three-phase general purpose motor is designed for a wide range of applications, including industrial machinery, HVAC systems, and manufacturing equipment. With a rugged open drip-proof design and ball bearings, it provides reliable and efficient operation in harsh environments. The motor features a high service factor of 1.15 and a nominal efficiency of 86.5%, making it an excellent choice for continuous duty applications. Its compact 182/4 frame size and versatile 230/460V AC voltage capabilities make it easy to integrate into existing systems, while its CE, CSA, and UL certifications ensure compliance with industry standards.
Top product features:
- Three-Phase AC Voltage Compatibility: Operates on 230/460V AC voltage.
- Ball Motor Bearings: Provides smooth and durable motor operation.
- CW/CCW Motor Shaft Rotation: Offers flexibility in motor application and installation.
Top product applications:
- Industrial Pumping Systems
- Manufacturing Machinery
- Material Handling Equipment
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 1170, Frame 182/4, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 4.6/2.3 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL, Includes Conduit Box
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.90
- Package Width: 15.10
- Package Height: 12.40
- Package Weight: 66.25
Product info last updated on February 1, 2026 9:40am UTC
Category: Motors
