Three-Phase General Purpose Motor, 2 HP, 182/4 Frame, 230/460V AC Voltage, 3520 Nameplate RPM MPN:36VE98
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1860647

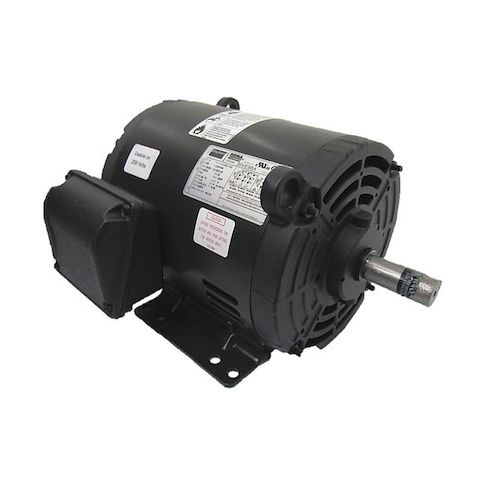

Three-Phase General Purpose Motor, 2 HP, 182/4 Frame, 230/460V AC Voltage, 3520 Nameplate RPM
This Dayton 2 HP Three-Phase General Purpose Motor is designed for a wide range of applications, including industrial processes, manufacturing facilities, and commercial facilities. Its 85.5% nominal efficiency and 1.15 service factor make it an ideal choice for continuous duty operations. The motor's rigid base mounting and ball bearings ensure smooth and reliable operation, while its Class F insulation and 40°C maximum ambient temperature rating provide added protection. Suitable for use in areas requiring CE, CSA, and UL certification, this motor is a reliable and efficient solution for applications requiring 230/460V AC voltage.
Top product features:
- Three-phase operation for efficient power usage
- Open drip-proof motor enclosure design for protection against environmental hazards
- Ball motor bearings for reduced friction and increased motor lifespan
Top product applications:
- Industrial conveyor systems
- Pumping systems for water treatment plants
- Manufacturing machinery for textile production
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 2 HP, Nameplate RPM 3520, Frame 182/4, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 5.1/2.2 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 3001-3600, CE, CSA, UL, Includes Conduit Box
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.60
- Package Width: 14.90
- Package Height: 12.50
- Package Weight: 58.25
Product info last updated on March 2, 2026 1:38am UTC
Category: Motors
