Three-Phase General Purpose Motor, 10 HP, 254/6U Frame, 230/460V AC Voltage, 3, 540 Nameplate RPM MPN:36VF03
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1860601

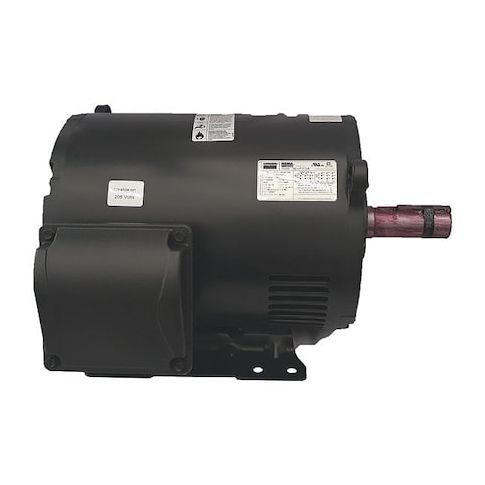

Three-Phase General Purpose Motor, 10 HP, 254/6U Frame, 230/460V AC Voltage, 3, 540 Nameplate RPM
The Dayton 10 HP three-phase general purpose motor is a reliable and efficient solution for a wide range of industrial applications. Suitable for use in continuous duty applications, this motor features a rigid base mounting type and ball bearings for smooth operation. With a nameplate RPM of 3,540 and a maximum ambient temperature of 40 degrees C, it can handle demanding environments. The motor's high efficiency of 89.5 percent and 1.15 service factor make it an ideal choice for applications such as pumps, fans, and compressors. Its CSA and UL certifications ensure compliance with industry standards.
Top product features:
- Three-Phase Operation
- Open Drip Proof Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Industrial Conveyors
- Pumps and Pumping Systems
- Oil and Gas Exploration and Production
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 10 HP, Nameplate RPM 3,540, Frame 254/6U, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 23.4/11.7 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 3001-3600, CSA, UL, Includes Conduit Box
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.00
- Package Width: 27.00
- Package Height: 17.00
- Package Weight: 210.00
Product info last updated on January 31, 2026 2:42am UTC
Category: Motors
