Three-Phase General Purpose Motor, 20 HP, 254/6T Frame, 230/460V AC Voltage, 3530 Nameplate RPM MPN:36VF08
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1860595

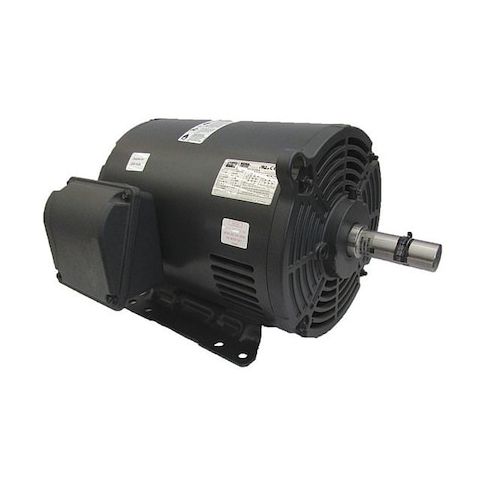

Three-Phase General Purpose Motor, 20 HP, 254/6T Frame, 230/460V AC Voltage, 3530 Nameplate RPM
This 20 HP three-phase general purpose motor is designed for a wide range of applications, including industrial and commercial use. Featuring a robust 254/6T frame and open drip-proof motor enclosure, it provides reliable performance in harsh environments. With a nameplate RPM of 3530 and a service factor of 1.15, it can handle demanding loads with ease. Suitable for continuous duty, it's ideal for use in manufacturing, material handling, and other high-volume operations. Its high efficiency and durable construction make it a reliable choice for applications requiring long-term performance and minimal maintenance.
Top product features:
- Three-phase design for efficient power distribution
- Open drip proof motor enclosure for protection against dust and water
- Ball motor bearings for smooth and durable operation
Top product applications:
- Factory Automation
- Pump and Compressor Drive
- Material Handling and Conveying Systems
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 20 HP, Nameplate RPM 3530, Frame 254/6T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 44.7/22.3 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91 Percent, Continuous Duty, 3001-3600, CSA, UL, Includes Conduit Box
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.30
- Package Width: 27.20
- Package Height: 16.00
- Package Weight: 221.00
Product info last updated on February 1, 2026 7:28am UTC
Category: Motors
