Three-Phase General Purpose Motor, 2 HP, 143/5TC Frame, 230/460V AC Voltage, 3, 450 Nameplate RPM MPN:36VF12
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1860586

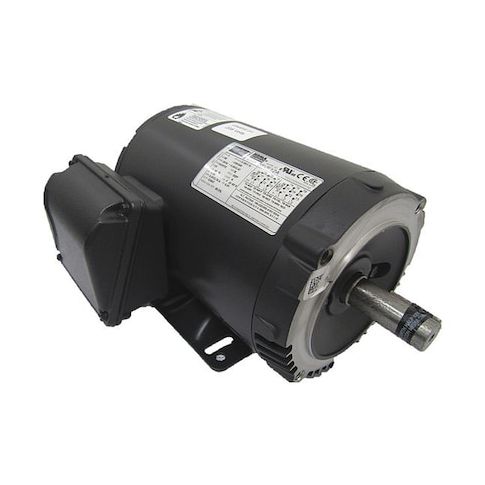

Three-Phase General Purpose Motor, 2 HP, 143/5TC Frame, 230/460V AC Voltage, 3, 450 Nameplate RPM
This Dayton Three-Phase General Purpose Motor is a reliable and efficient solution for a wide range of industrial applications. Its 2 HP rating and 3,450 RPM make it suitable for use in conveyor systems, pumps, and fans. The motor's open drip-proof enclosure design and rigid base provide a secure and durable mounting option. With a service factor of 1.15 and a maximum ambient temperature of 40°C, this motor can operate in demanding environments. Its CE, CSA, and UL certifications ensure compliance with industry standards. Ideal for continuous duty applications, this motor is a versatile and effective choice for various industrial uses.
Top product features:
- Three-phase operation provides a stable and efficient power supply.
- Ball motor bearings ensure smooth and quiet operation.
- Continuous duty rating allows for prolonged use without overheating.
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 2 HP, Nameplate RPM 3,450, Frame 143/5TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 5.0/2.5 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 3001-3600, CE, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.00
- Package Width: 15.00
- Package Height: 9.62
- Package Weight: 40.00
Product info last updated on February 16, 2026 1:30am UTC
Category: Motors
