Three-Phase General Purpose Motor, 1/4 HP, 56C Frame, 230/460V AC Voltage, 3460 Nameplate RPM MPN:36VF14
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1860577

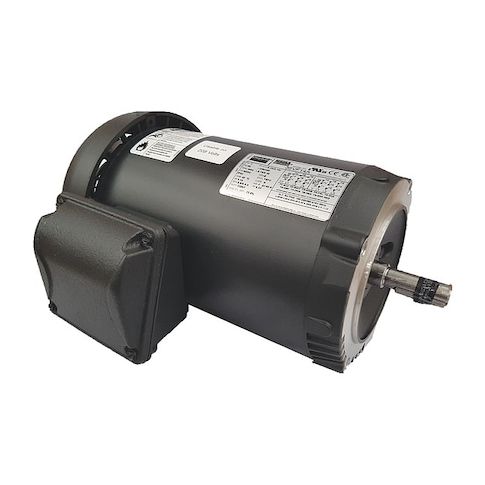

Three-Phase General Purpose Motor, 1/4 HP, 56C Frame, 230/460V AC Voltage, 3460 Nameplate RPM
This three-phase general purpose motor is designed for continuous duty applications, offering high efficiency and reliability. With a 1/4 HP rating and 230/460V AC voltage, it's suitable for a variety of industrial and commercial use cases, such as pumps, fans, and conveyor systems. The motor features a totally enclosed fan cooled design, steel frame, and ball bearings for durability and long lifespan. Its compact size and CW/CCW shaft rotation make it easy to integrate into existing systems. Ideal for applications with high ambient temperatures, this motor is a reliable choice for demanding industrial environments.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design provides a safe and reliable operation in harsh environments.
- Ball Motor Bearings ensure smooth and quiet operation with reduced maintenance needs.
- Continuous Duty operation allows for uninterrupted performance under heavy loads.
Top product applications:
- Pumps and water treatment equipment
- Fans and blowers
- Conveyors and material handling equipment
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/4 HP, Nameplate RPM 3460, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 0.76/0.38 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 72 Percent, Continuous Duty, 3001-3600, CE, CSA, UL, Includes Shaft Key
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.00
- Package Width: 11.00
- Package Height: 10.00
- Package Weight: 22.80
Product info last updated on February 1, 2026 3:28am UTC
Category: Motors
