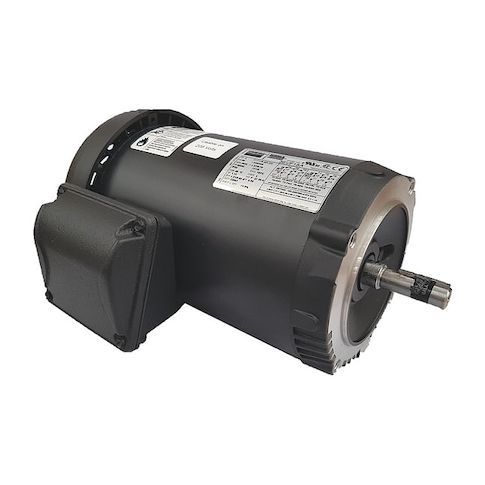

Three-Phase General Purpose Motor, 1/2 HP, 56C Frame, 230/460V AC Voltage, 3530 Nameplate RPM MPN:36VF15
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1860568
Three-Phase General Purpose Motor, 1/2 HP, 56C Frame, 230/460V AC Voltage, 3530 Nameplate RPM
This 1/2 HP three-phase general purpose motor from Dayton is designed for a wide range of applications, including industrial and commercial use. Its totally enclosed fan cooled (TEFC) motor enclosure provides reliable operation in harsh environments, while its steel frame and ball bearings ensure durability and long lifespan. With a nameplate RPM of 3530 and a service factor of 1.15, this motor can handle continuous duty cycles and demanding loads. Suitable for use in facilities with 230/460V AC voltage, it's an ideal choice for industries such as manufacturing, food processing, and HVAC.
Top product features:
- Three-Phase General Purpose Motor, Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings for smooth and durable operation
- Continuous Duty operation for reliable and long-lasting performance
Top product applications:
- Industrial machinery
- Pumps and water treatment systems
- Fans and blowers
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/2 HP, Nameplate RPM 3530, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.4/0.70 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 73.2 Percent, Continuous Duty, 3001-3600, CE, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.25
- Package Width: 11.00
- Package Height: 9.62
- Package Weight: 19.80
Product info last updated on February 1, 2026 11:20am UTC
Category: Motors
