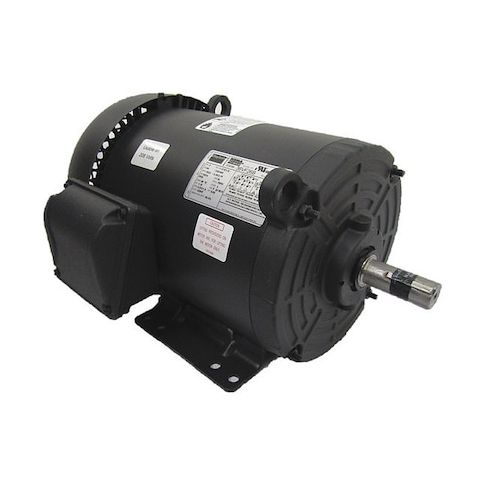

Three-Phase General Purpose Motor, 2 HP, 182/4 Frame, 230/460V AC Voltage, 3510 Nameplate RPM MPN:36VF26
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1860525
Three-Phase General Purpose Motor, 2 HP, 182/4 Frame, 230/460V AC Voltage, 3510 Nameplate RPM
This 2 HP three-phase general purpose motor is designed for a wide range of applications, including industrial and commercial use. Its totally enclosed fan cooled design provides reliable operation in harsh environments, while its rigid base mounting type ensures stable and secure installation. With a nameplate RPM of 3510 and a maximum ambient temperature of 40 degrees C, this motor is suitable for use in a variety of settings, including manufacturing facilities, warehouses, and distribution centers. Its high efficiency and continuous duty rating make it an ideal choice for applications requiring consistent performance and minimal downtime.
Top product features:
- Three-Phase Operation for Efficient Power Use
- Totally Enclosed Fan Cooled Motor Enclosure for Reduced Noise and Increased Protection
- Ball Motor Bearings for Smooth and Quiet Operation
Top product applications:
- Pumps and water treatment systems
- Conveyor systems and material handling equipment
- Industrial fans and blowers
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 2 HP, Nameplate RPM 3510, Frame 182/4, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 5.4/2.7 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 84 Percent, Continuous Duty, 3001-3600, CSA, UL, Includes Conduit Box
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.75
- Package Width: 18.50
- Package Height: 12.75
- Package Weight: 61.00
Product info last updated on February 1, 2026 8:32am UTC
Category: Motors
