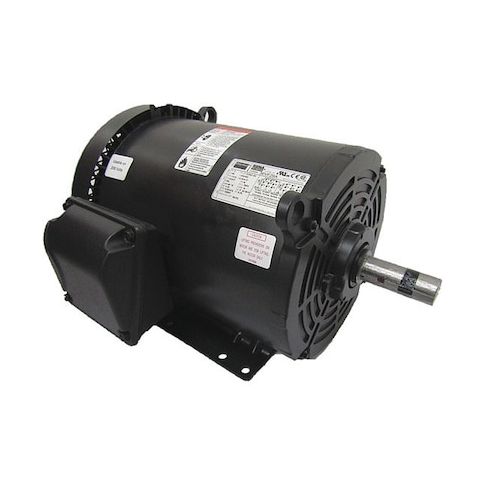

Three-Phase General Purpose Motor, 3 HP, 213/5T Frame, 230/460V AC Voltage, 1175 Nameplate RPM MPN:36VF29
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1860507
Three-Phase General Purpose Motor, 3 HP, 213/5T Frame, 230/460V AC Voltage, 1175 Nameplate RPM
This high-performance 3 HP three-phase general purpose motor is designed for demanding industrial applications. With a totally enclosed fan-cooled motor enclosure and rigid base mounting, it provides reliable and efficient operation in a variety of settings. The motor's 89.5% nominal efficiency and 1.15 service factor make it ideal for continuous duty applications. Its 213/5T frame and 230/460V AC voltage rating ensure compatibility with a range of electrical systems. Suitable for use in manufacturing, processing, and other industrial environments, this motor offers a cost-effective solution for heavy-duty applications.
Top product features:
- Three-phase design allows for efficient operation in commercial and industrial settings.
- Totally enclosed fan-cooled motor enclosure design provides reliable operation in harsh environments.
- Ball motor bearings enable smooth and quiet operation.
Top product applications:
- Industrial Conveyors
- Manufacturing Processes
- Pumps
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 1175, Frame 213/5T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 8.3/4.1 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.20
- Package Width: 16.00
- Package Height: 13.70
- Package Weight: 155.00
Product info last updated on January 26, 2026 5:07pm UTC
Category: Motors
