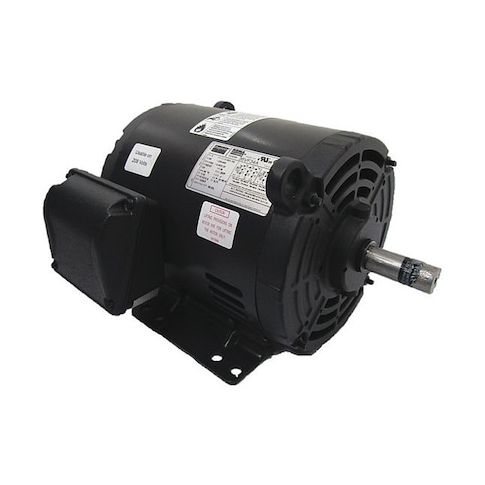

Three-Phase General Purpose Motor, 1 1/2 HP, 182/4T Frame, 230/460V AC Voltage, 1165 Nameplate RPM MPN:36VF34
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1860498
Three-Phase General Purpose Motor, 1 1/2 HP, 182/4T Frame, 230/460V AC Voltage, 1165 Nameplate RPM
This 1.5 HP three-phase general purpose motor is designed for a wide range of industrial applications, including manufacturing, pumping, and HVAC systems. With its 182/4T frame and open drip-proof motor enclosure, it provides reliable operation in harsh environments. The motor's high efficiency and continuous duty rating make it an ideal choice for applications requiring constant operation. Its rigid base mounting and steel frame ensure stability and durability, while the ball bearings provide smooth operation. Suitable for use in temperatures up to 40°C, this motor is a versatile solution for various industrial applications, including those in the food, chemical, and pharmaceutical industries.
Top product features:
- Three-Phase Operation
- Open Drip Proof Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Industrial conveyor systems
- Pumps and blowers
- Textile machinery
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 1165, Frame 182/4T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 4.5/2.2 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.80
- Package Width: 14.80
- Package Height: 12.10
- Package Weight: 61.55
Product info last updated on March 15, 2026 6:51pm UTC
Category: Motors
