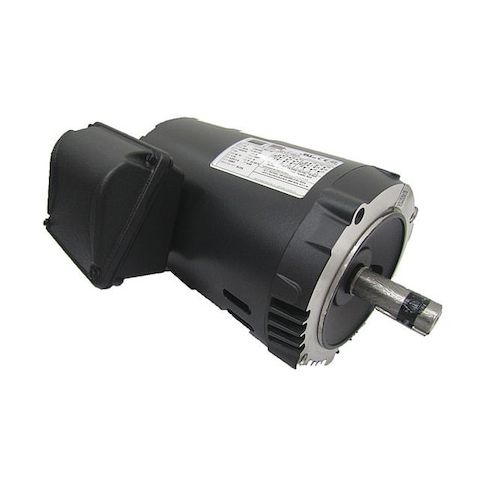

Three-Phase General Purpose Motor, 1 1/2 HP, 143/5TC Frame, 230/460V AC Voltage, 3465 Nameplate RPM
This 1.5 HP three-phase general purpose motor from Dayton is designed for a wide range of industrial applications, including manufacturing, pumping, and HVAC systems. With a durable open drip proof design and steel frame, it can withstand harsh environments and heavy use. The motor features a high efficiency rating of 84% and a service factor of 1.15, making it a cost-effective choice for continuous duty applications. Its compact size and easy mounting make it ideal for use in tight spaces, and its CE, CSA, and UL certifications ensure compliance with industry standards.
Top product features:
- Three-Phase General Purpose Motor design provides a reliable power source for various applications.
- Open Drip Proof Motor Enclosure Design protects the motor from dust and moisture, ensuring safe operation in harsh environments.
- Ball Motor Bearings provide smooth and quiet operation, reducing vibration and extending the motor's lifespan.
Top product applications:
- Industrial conveyor belt systems
- Material handling equipment
- Manufacturing machinery
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 3465, Frame 143/5TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.7/1.8 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 84 Percent, Continuous Duty, 3001-3600, CE, CSA, UL, Includes Conduit Box
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.75
- Package Width: 18.25
- Package Height: 12.50
- Package Weight: 36.00
